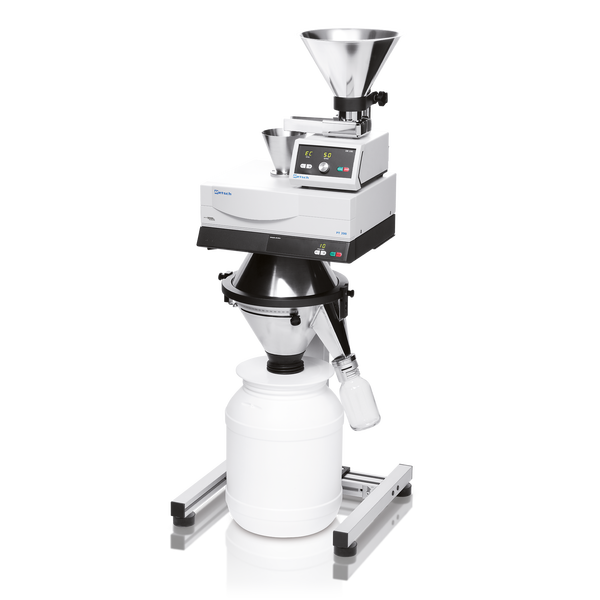

PT 200 drive unit incl. 10 sample bottles 500 ml and collecting receptacle 26 litres (please order vibratory feeder, feeding kit and bottom cone separately)
最大分样比取决于可在底锥上设置的最大槽宽。这与现有的三个底部锥体不同。最小分样比取决于样品的最大粒径,因为狭缝宽度应至少比最大粒径宽3倍。这意味着从更小的颗粒中取到更小部分。要设置的槽宽度“X”可以通过所需分数“QT”与初始样品量“QA”的比值乘以底部锥体的固定节距周长“U”(对于所有底部锥体,U=795 mm)来计算。X = (QT/QA) x U例子:从初始样品量中提取200ml的代表性样品5000毫升(分样比1:25)。X=(200毫升/5000毫升)X 795毫米=32毫米。这意味着槽宽度必须设置为32 mm。请注意:样品数量应足够大,以代表初始数量。
42.787.0010

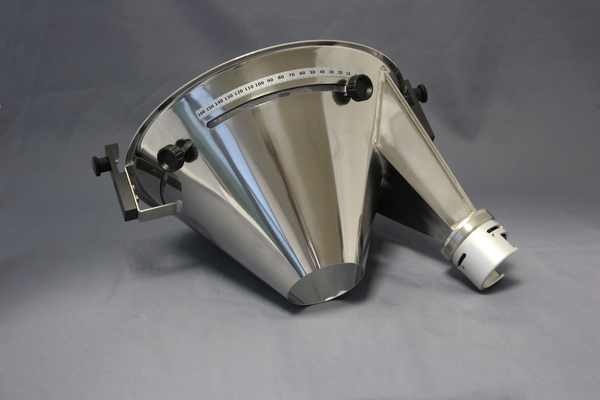

Bottom cone with 1 quick-release sample outlet, GL 55 thread, slot width 159 mm, adjustable dividing ratio max. 1 : 5
42.787.0011
Bottom cone with 2 quick-release sample outlets, GL 55 thread, slot width 110 mm, adjustable dividing ratio max. 2 x 1 : 7.2
42.787.0012
Bottom cone with 3 quick-release sample outlets, GL 55 thread, slot width 53 mm, adjustable dividing ratio max. 3 x 1 : 15
22.003.0013

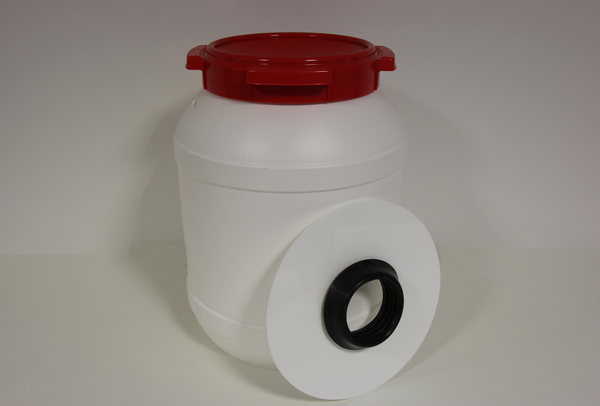

Collecting receptacle, 26 litres, plastic
22.523.0001
Sample bottles, GL 55 thread, 250 ml, 10 pieces
22.523.0002
Sample bottles, GL 55 thread, 500 ml, 10 pieces
Accessories PT 200
99.200.0022
IQ/OQ Documentation for PT 200
Vibratory Feeder DR 100 PT 200
DR100驱动单元(请单独订购进料套件)
70.938.0001
DR100驱动单元
220–240 V, 50 Hz
70.938.0002
DR100驱动单元
110–120 V, 60 Hz
72.020.0022
Feeding kit DR 100/3.5 litres for PT 200, incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres, fixture for hopper and data cable
72.020.0023
Feeding kit DR 100/22 litres for PT 200, incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres, fixture for hopper and data cable
