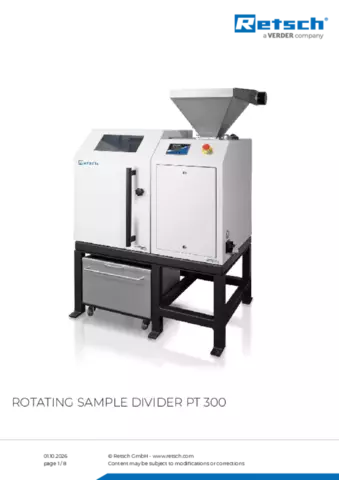

旋转分样仪 PT 300

A faultless and comparable analysis is closely linked to accurate sample handling. Only a sample representative of the initial material can provide meaningful analysis results. Rotating sample dividers ensure the representativeness of a sample and thus the reproducibility of the analysis.

The rotating sample divider PT 300 is specially designed for representative, dust-free division and volume reduction of large amounts of powdered or granular bulk materials. The selection of different dividing modules determines the dividing ratio and the sample amount. The PT 300 is available in configurations for the division of either 30 l or 60 l sample material.

点击观看视频

预约在线产品演示！

优点

Exact division, also of large quantities
Modular design
Variable speed 18 - 53 rpm
Extraction of 4 - 10 samples for batch processing
Extraction of 1 sample for continuous processing with reject
Hopper design ensures easy flow control and cleaning
Inspection window with light facilitates monitoring of sample division process
Vibratory feeder with push-fit feed chute for easy cleaning
Removable base frame allows for variable operation height

旋转分样仪 PT 300 技术参数

应用	取样和分样
应用领域	农业, 化学 / 合成材料, 医药品, 地质 / 冶金, 工程/电子, 建筑原料, 环境 / 资源回收利用, 玻璃/ 陶瓷, 生物, 食物
样品特征	散装疏松材料
进料粒度*	<= 30 mm
转速	18 - 53 min-1
漏斗容量	depending on configuration: up to 30 l / 60 l
分样份数	30 l configuration: batch processing: 6 / 8 / 10 (depending on dividing module) processing with reject: 1 60l configuration: batch processing: 4 / 6 / 8 / 10 (depending on dividing module) processing with reject: 1
时间设置	数字模式

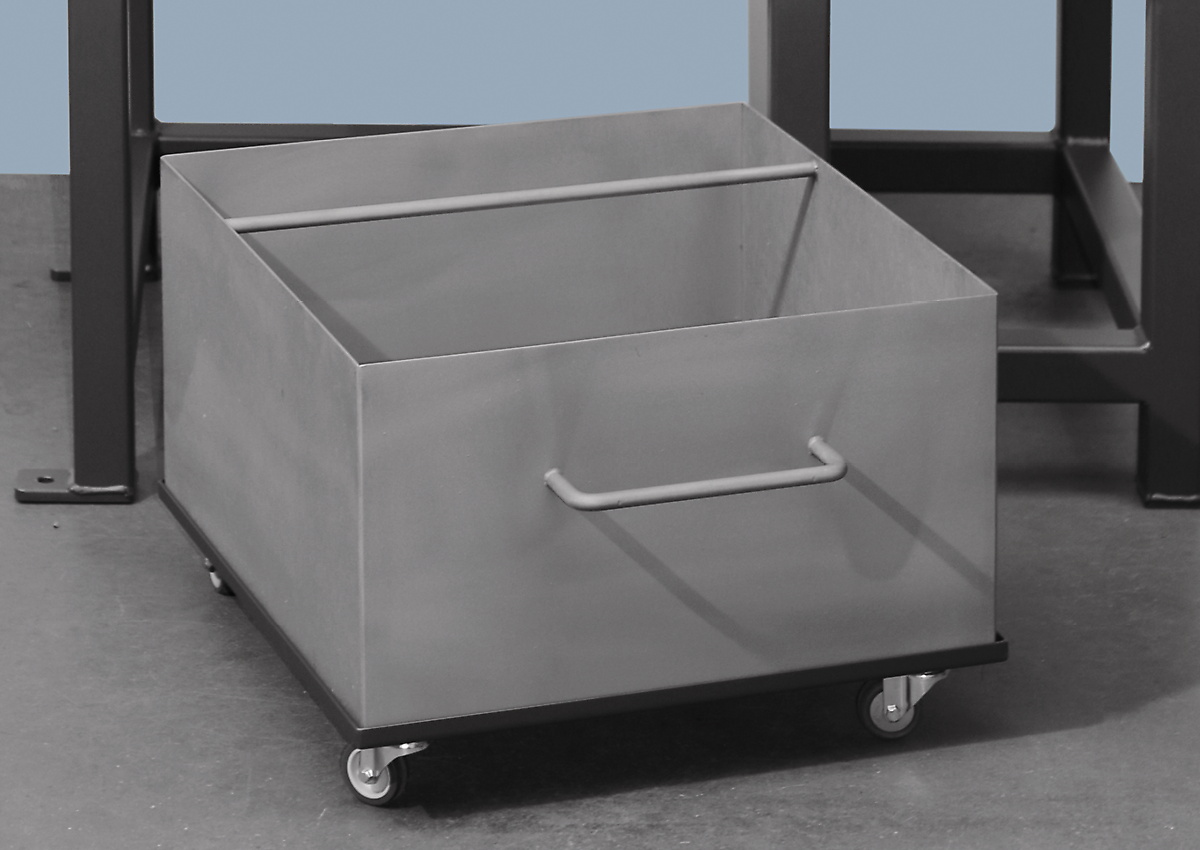

弃置样品接收容器容量	70 l
Volume of segments for batch wise operation	30 l configuration: 3,000 ml / 3,750 ml / 5,000 / 7,500 ml (depending on dividing module) 60 l configuration: 6,000 ml / 7,500 m l / 10,000 / 15,000 ml (depending on dividing module)
振动进样仪调节：	数字模式
电源数据：	100-120 V, 50/60 Hz; 200-240 V, 50/60Hz
电源接头：	单相
接受功率	500 VA
机体尺寸 (宽x高x纵深)	30 l configuration: 1180 x1510 x 750 mm 60 l configuration: 1180 x1620 x 750 mm
净重	30 l configuration: ~ 209 kg (incl. vibratory feeder) 60 l configuration: ~ 230 kg (incl. vibratory feeder)
标准	CE

受样品材料性质和仪器配置/设定的影响

旋转分样仪 PT 300 作用原理

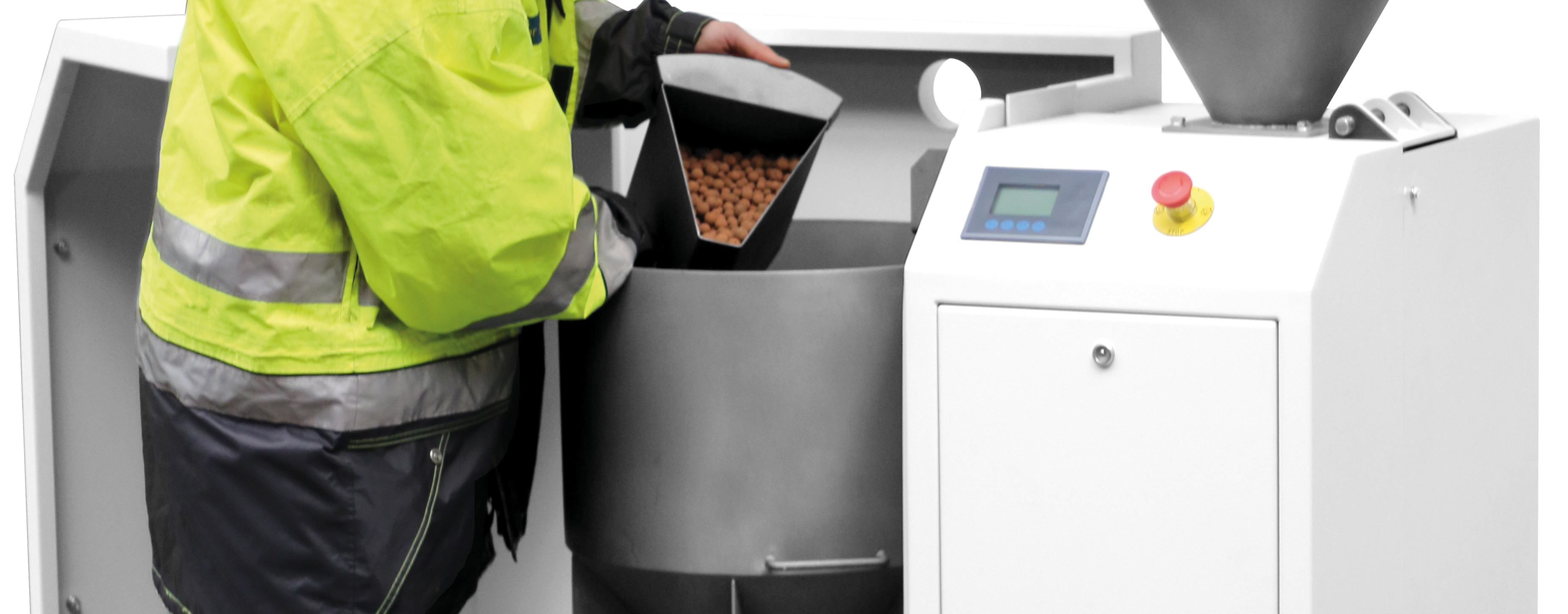

The sample is fed as a continuous stream at a controlled rate via the chute. Either one part sample is extracted or the stream is divided into equal segments by the action of a “circle” of segmental buckets rotating beneath it. The unit operates in accordance with internationally recognized sampling protocols and divides samples in a representative and reproducible way.

Two modules in one machine allow for both batch-processing and continuous sampling with reject. Due to a range of various segment size combinations a variety of volumes can be divided (no additional machine needed).
