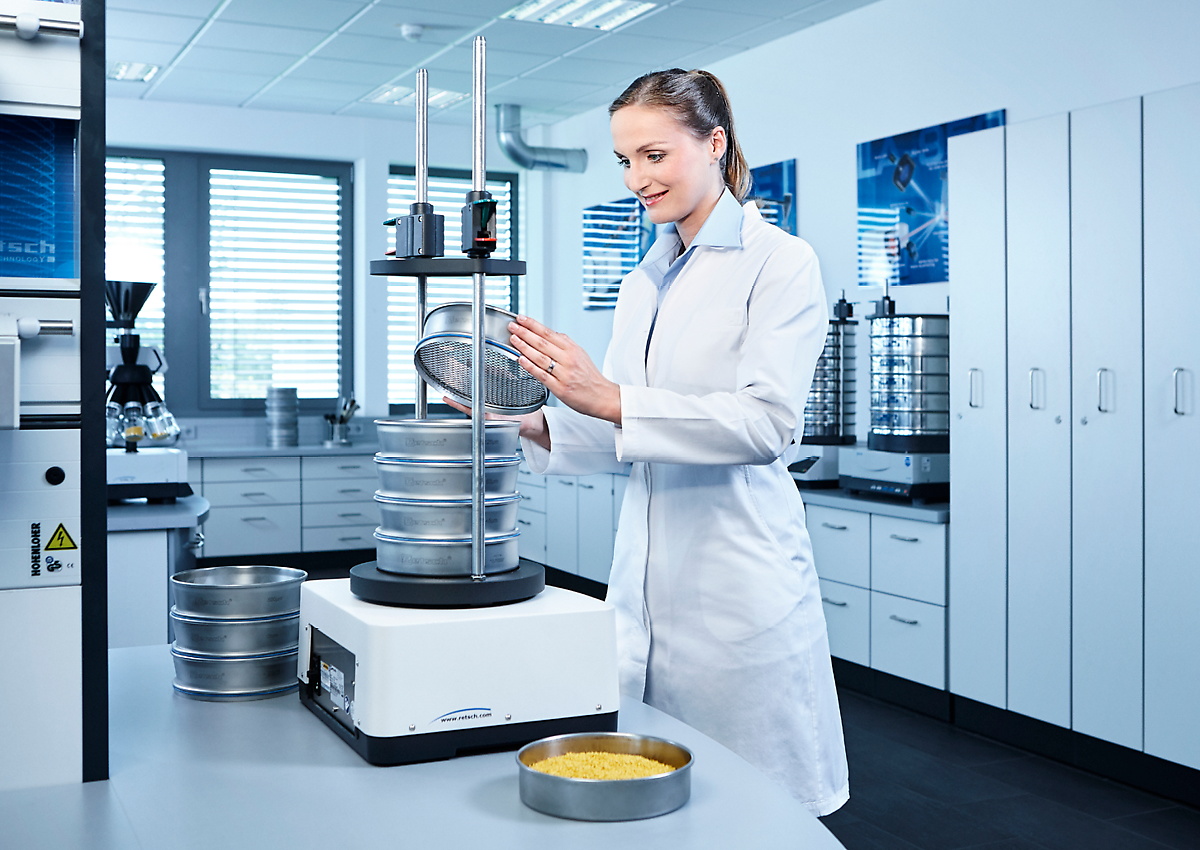

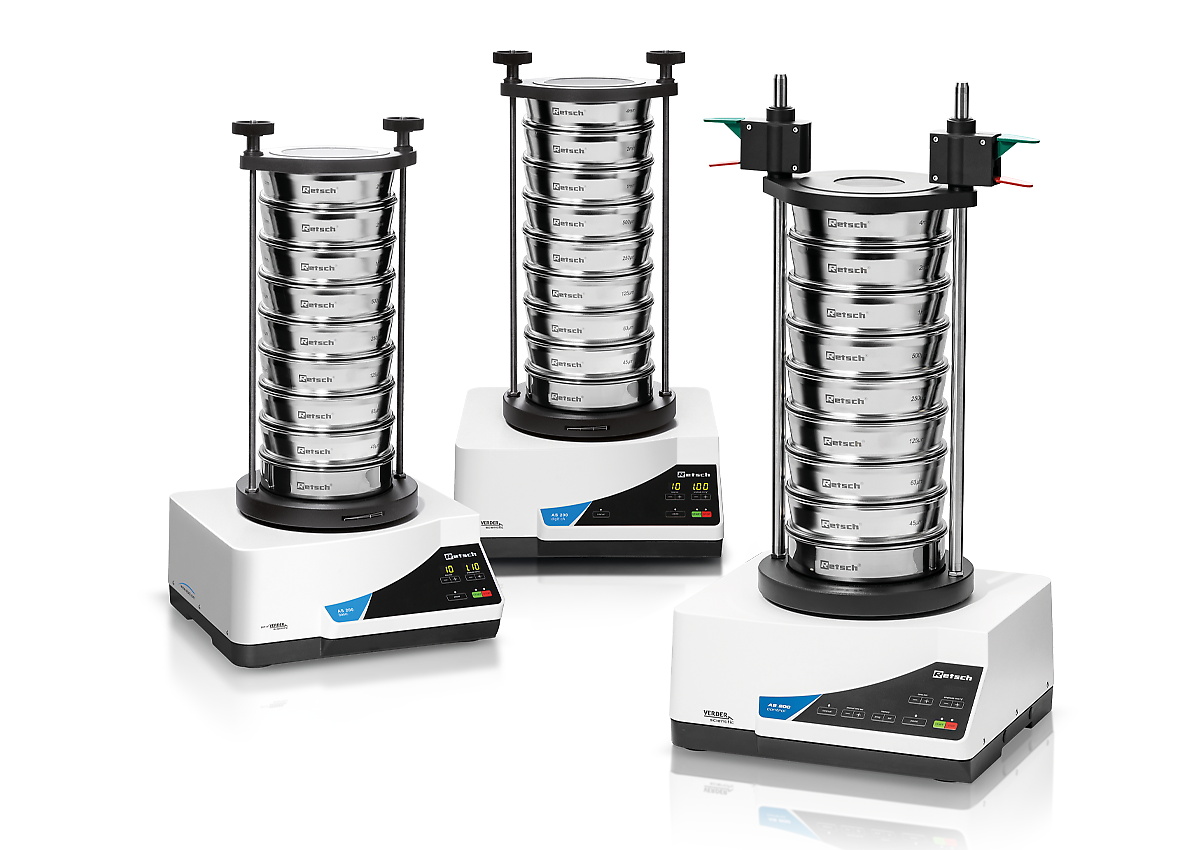

AS 200系列振动筛分仪用于研究与开发,原材料、中期和成品的质量控制以及生产监控。可控制的电磁驱动为每个产品提供了最佳的适应性。即使在短的筛分时间后也能获得准确的筛分占比。

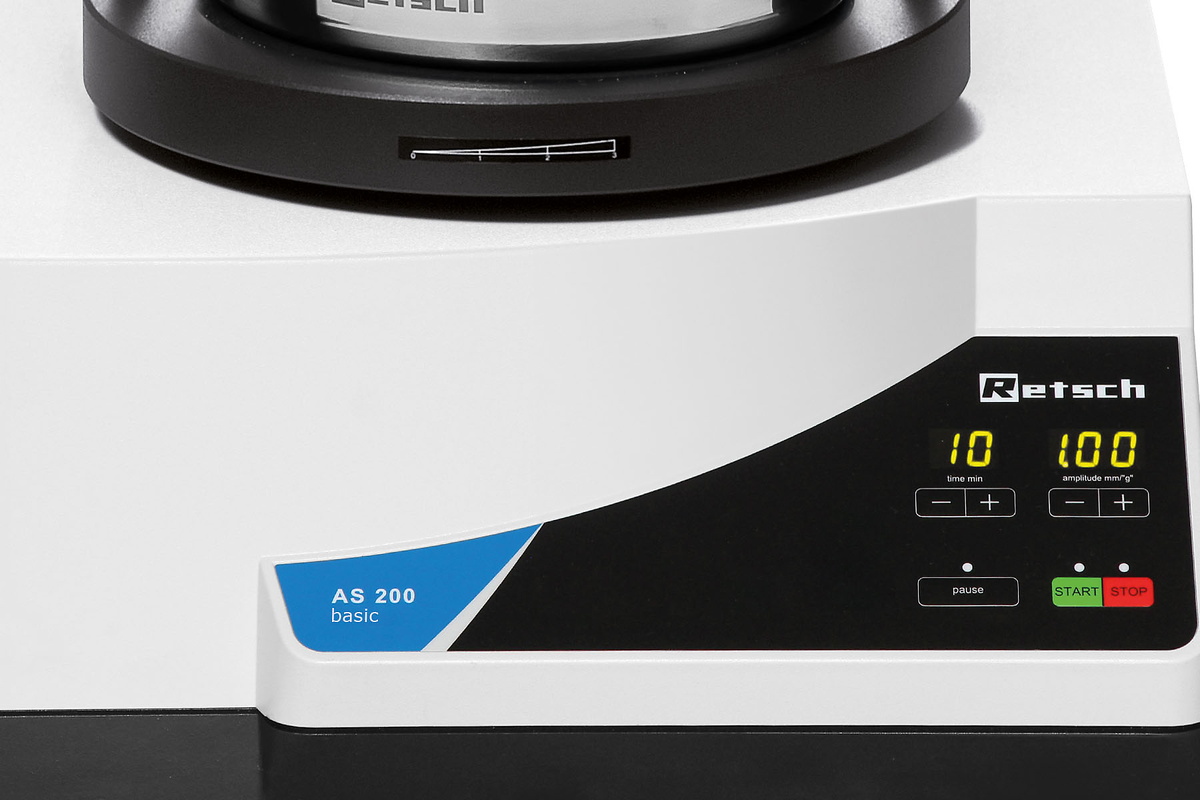

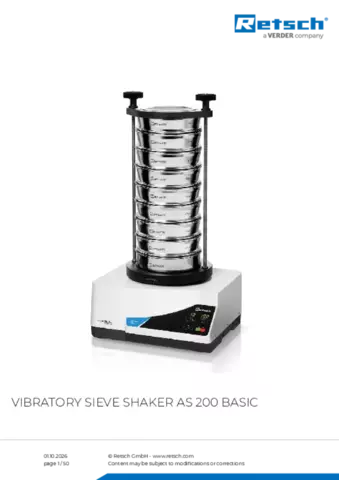

AS 200basic振动筛分仪是该系列的经济型选择,具有熟悉的RETSCH质量和可靠性。

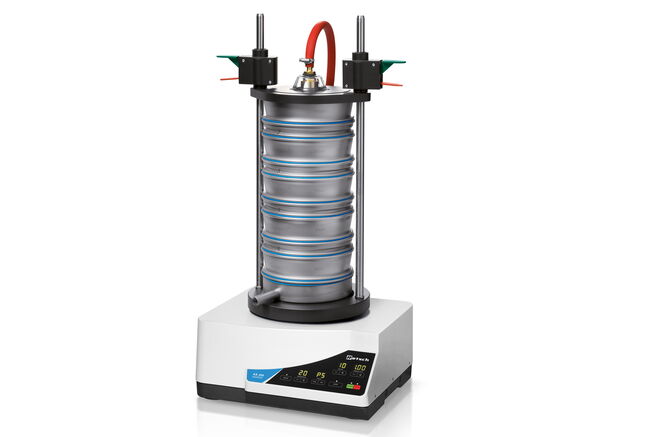

在许多应用中,湿法筛分是最佳解决方案,例如,当待测材料为悬浮液时,或当需要筛分易团聚的极细样品(<45μm)时。所有来自RETSCH的振动筛分仪可用于湿筛。有特殊配件,如带有喷嘴的紧固盖和带有出口的收集盘。通过在分析筛之间放置RETSCH的通气环,气体可以排出,而不让液体或样品材料溢出。
RETSCH sieve shakers can be equipped with a variety of accessories to meet a wide range of application requirements.

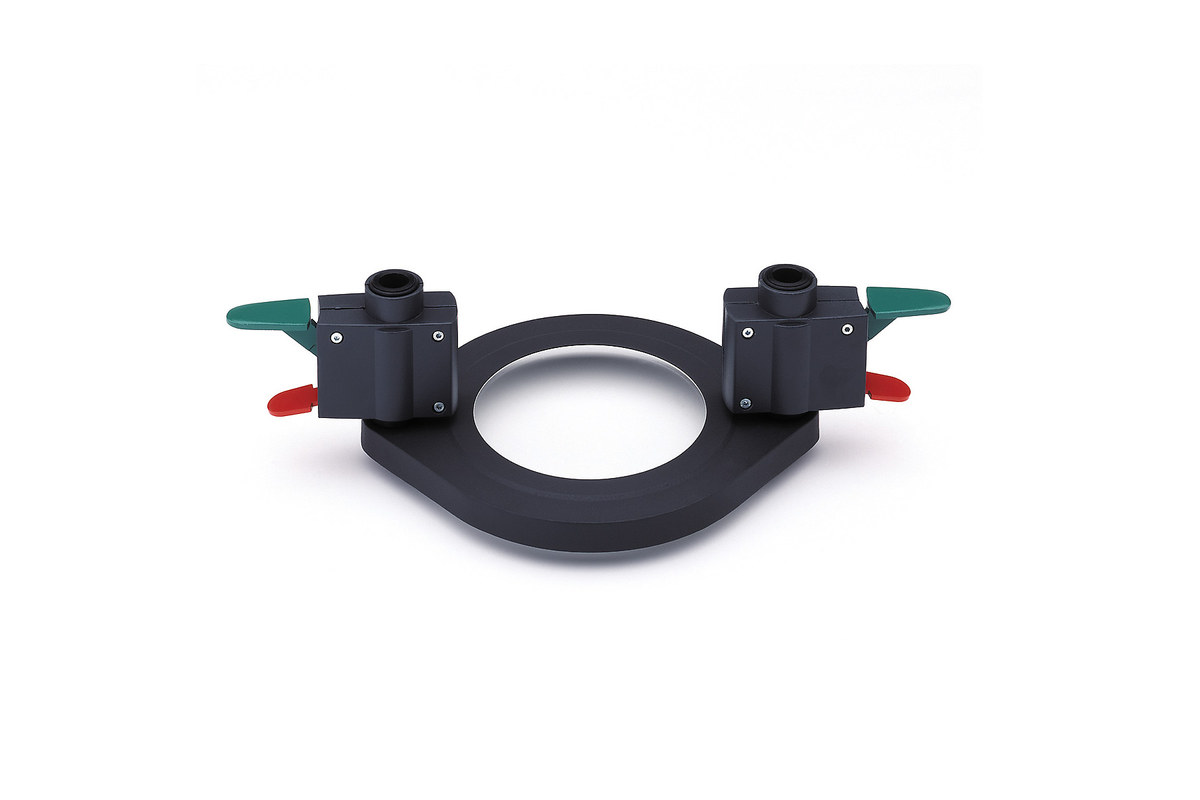

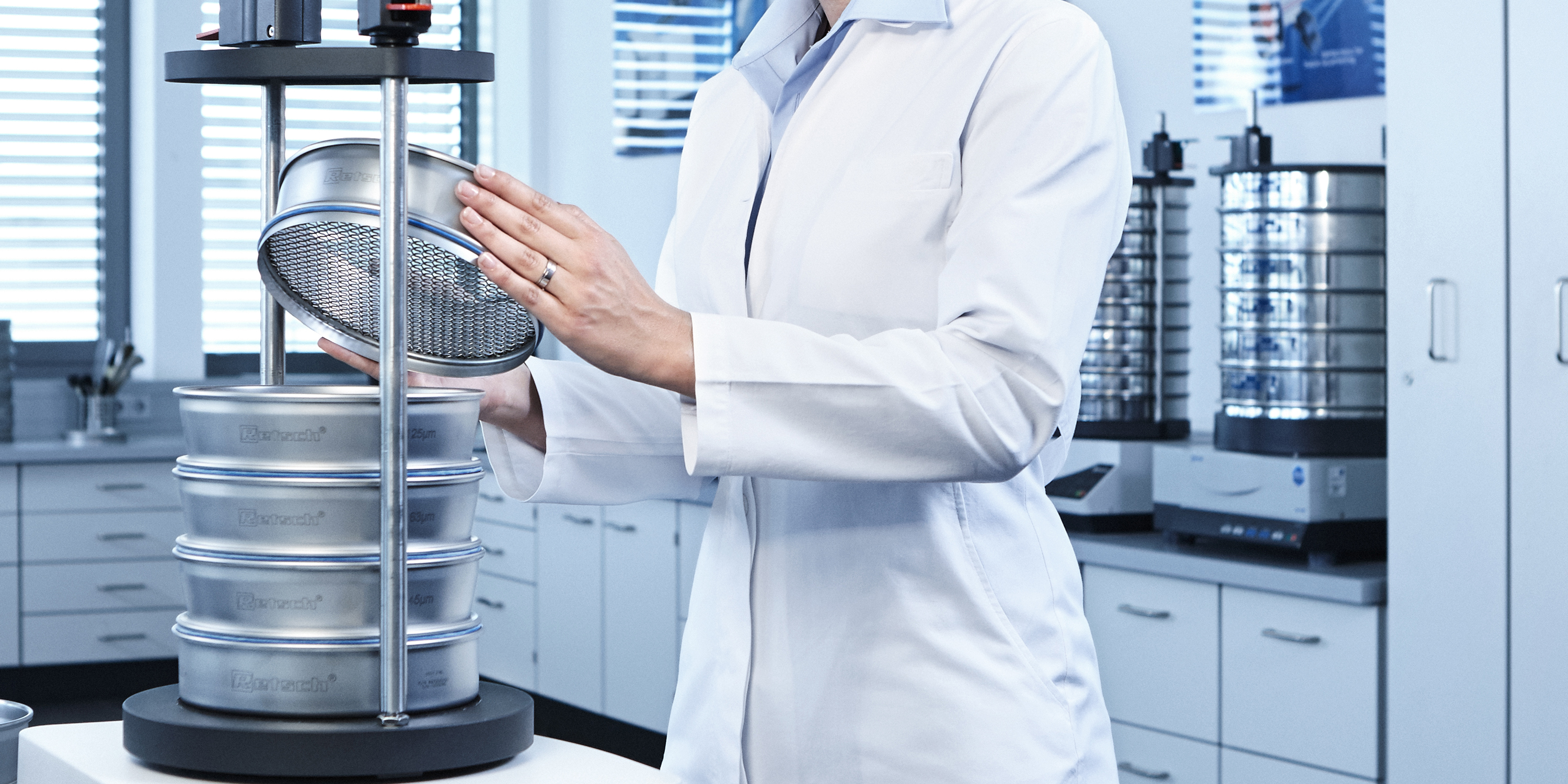

使用莱驰紧固装置,可安全、快速、方便地将分析筛夹紧在振动筛上,“舒适型”紧固装置是特别方便用户和节省时间。

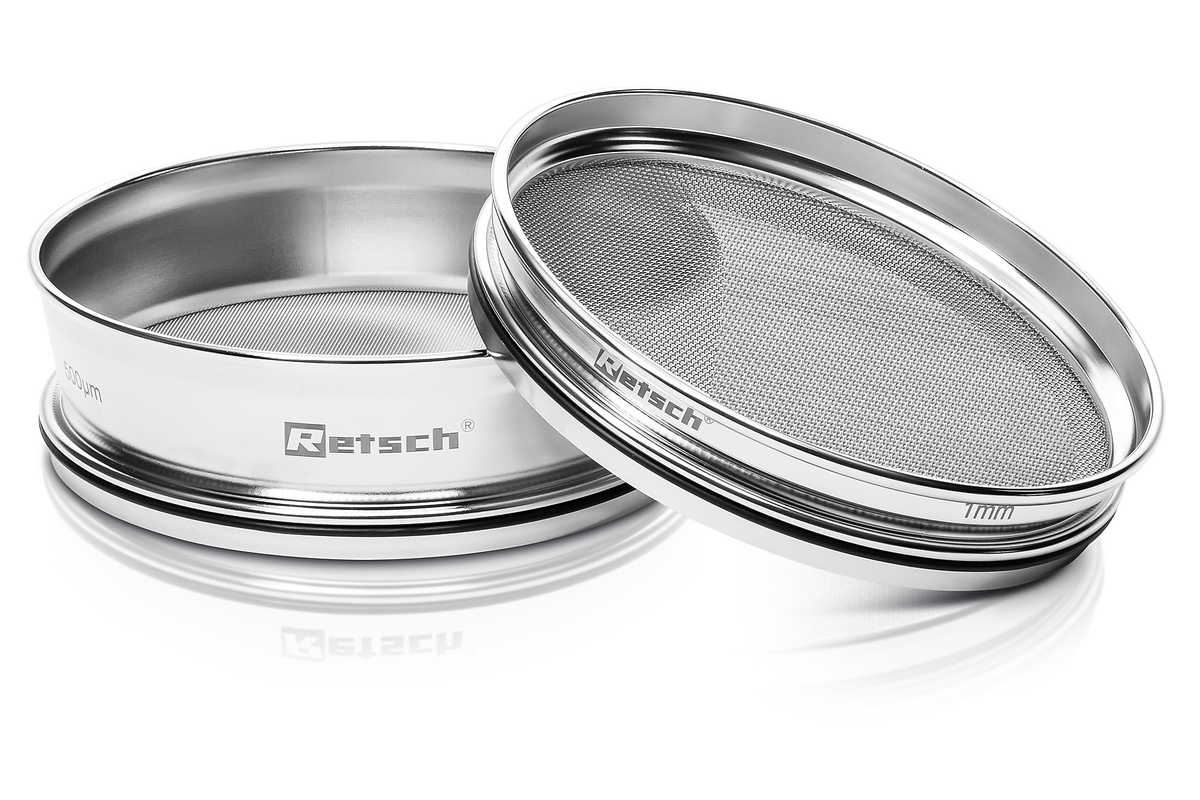

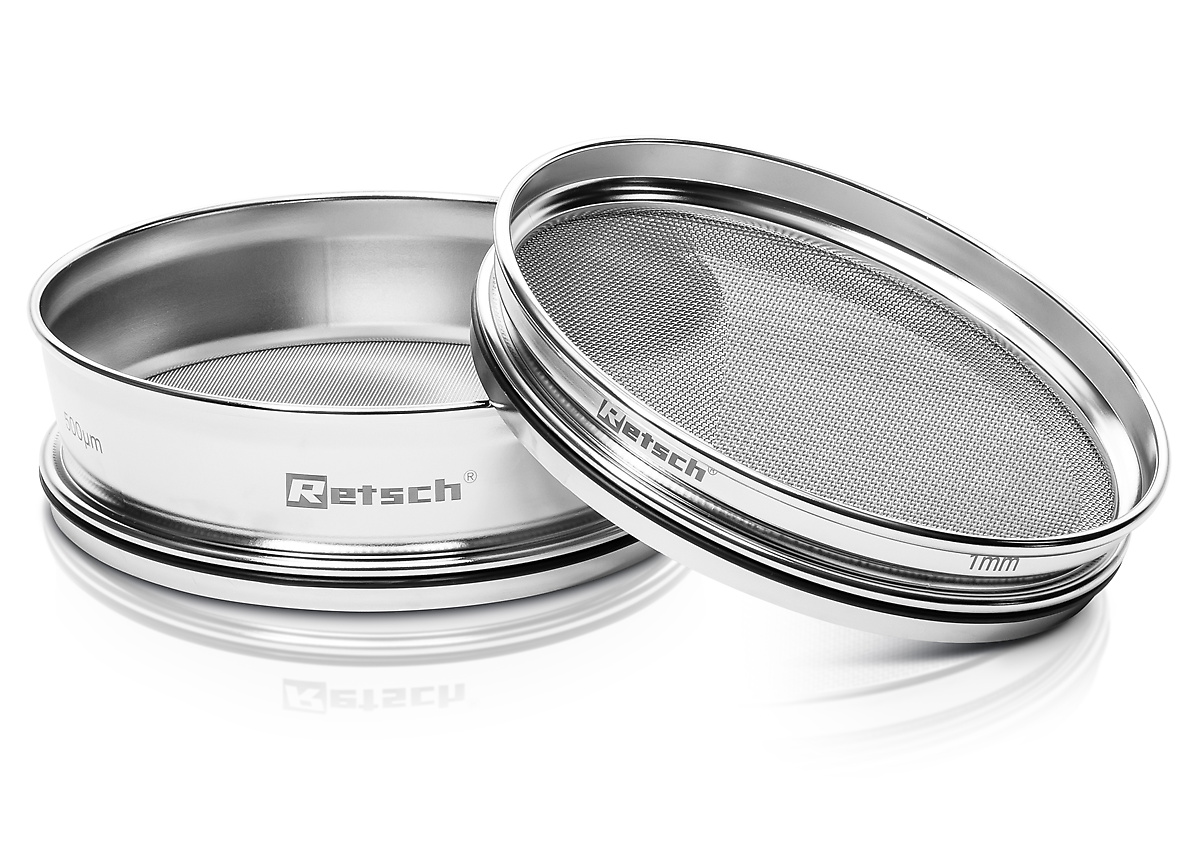

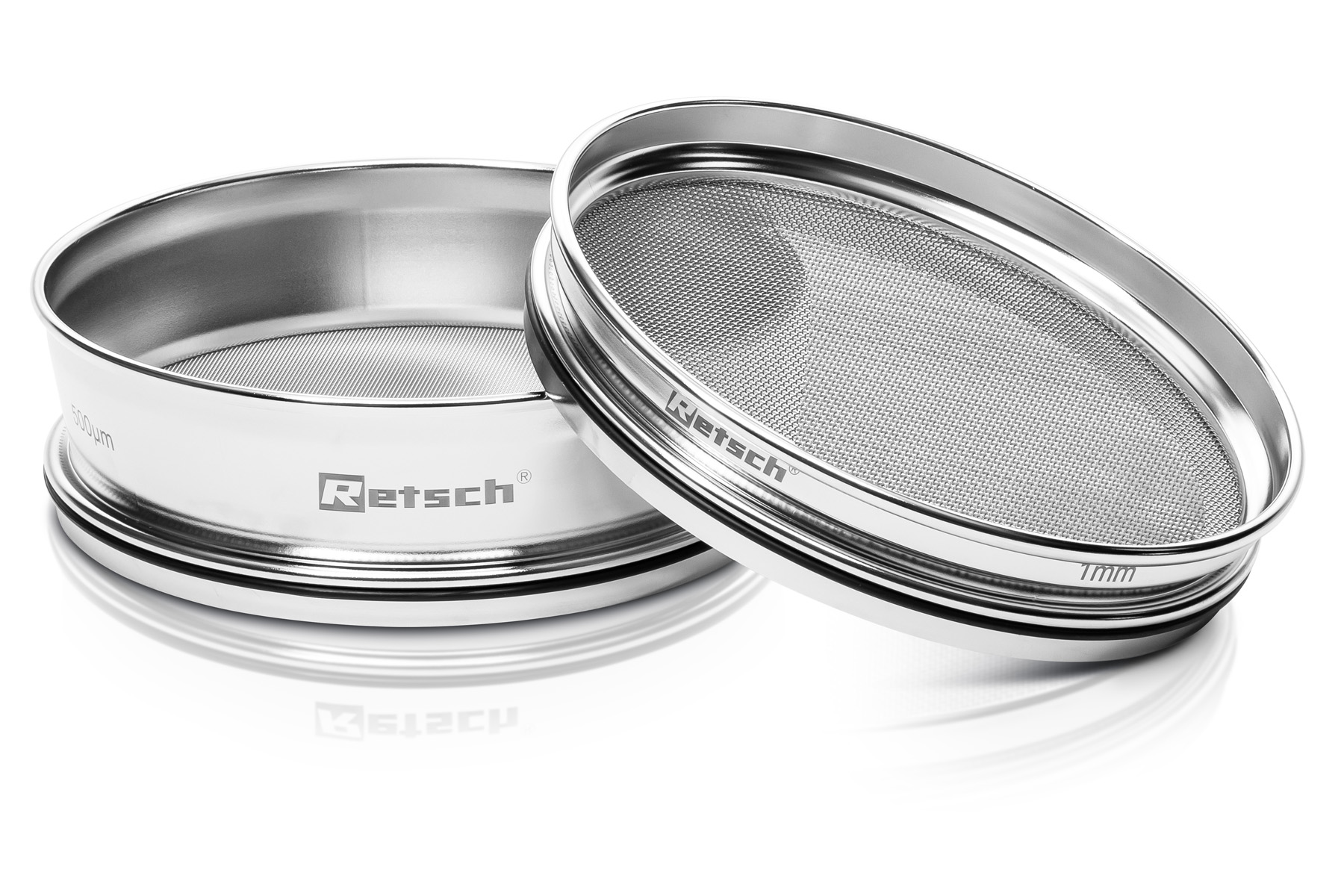

收集盘、中间盘、中间环和分析筛盖。
带喷嘴的夹紧盖、带出口的收集盘、通气环。

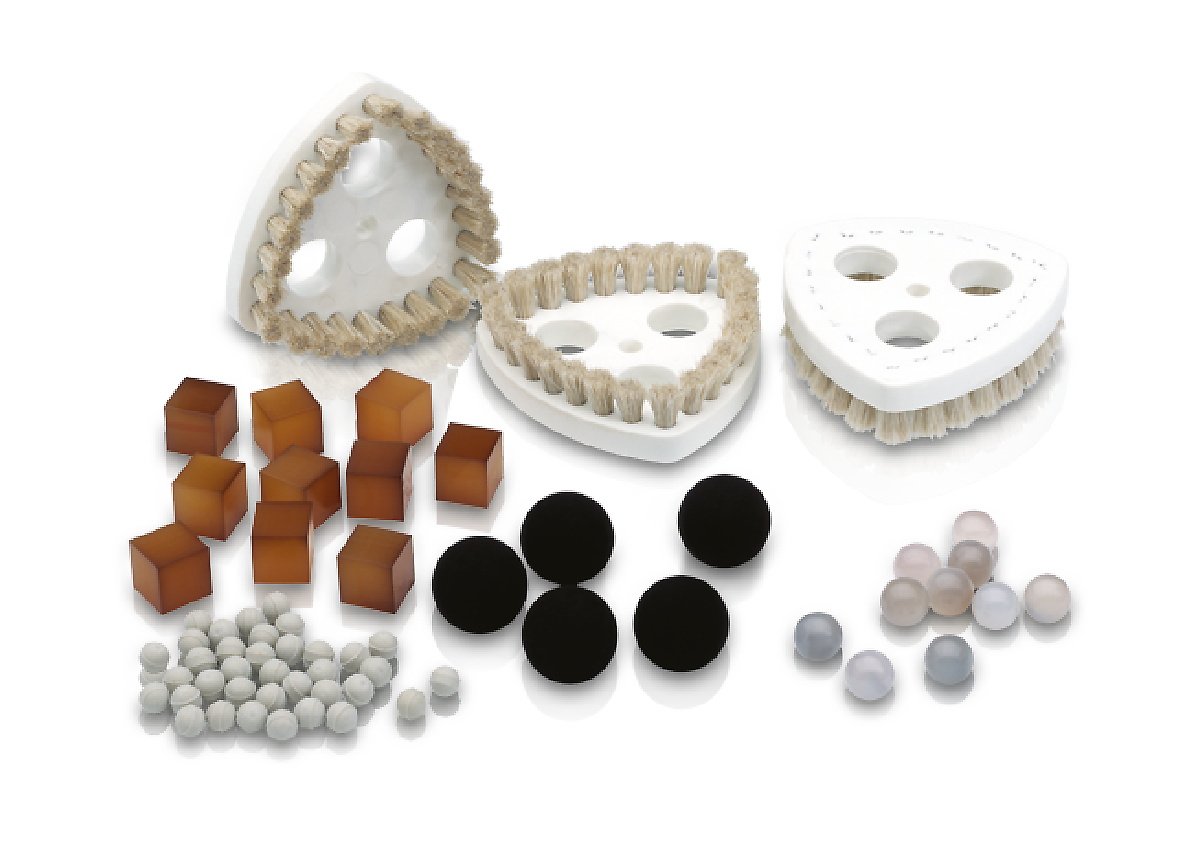

Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).链环、刷子、立方体、球(例如,当筛分小于100μm的颗粒并保持筛网自由通过时,用于减少团聚)。

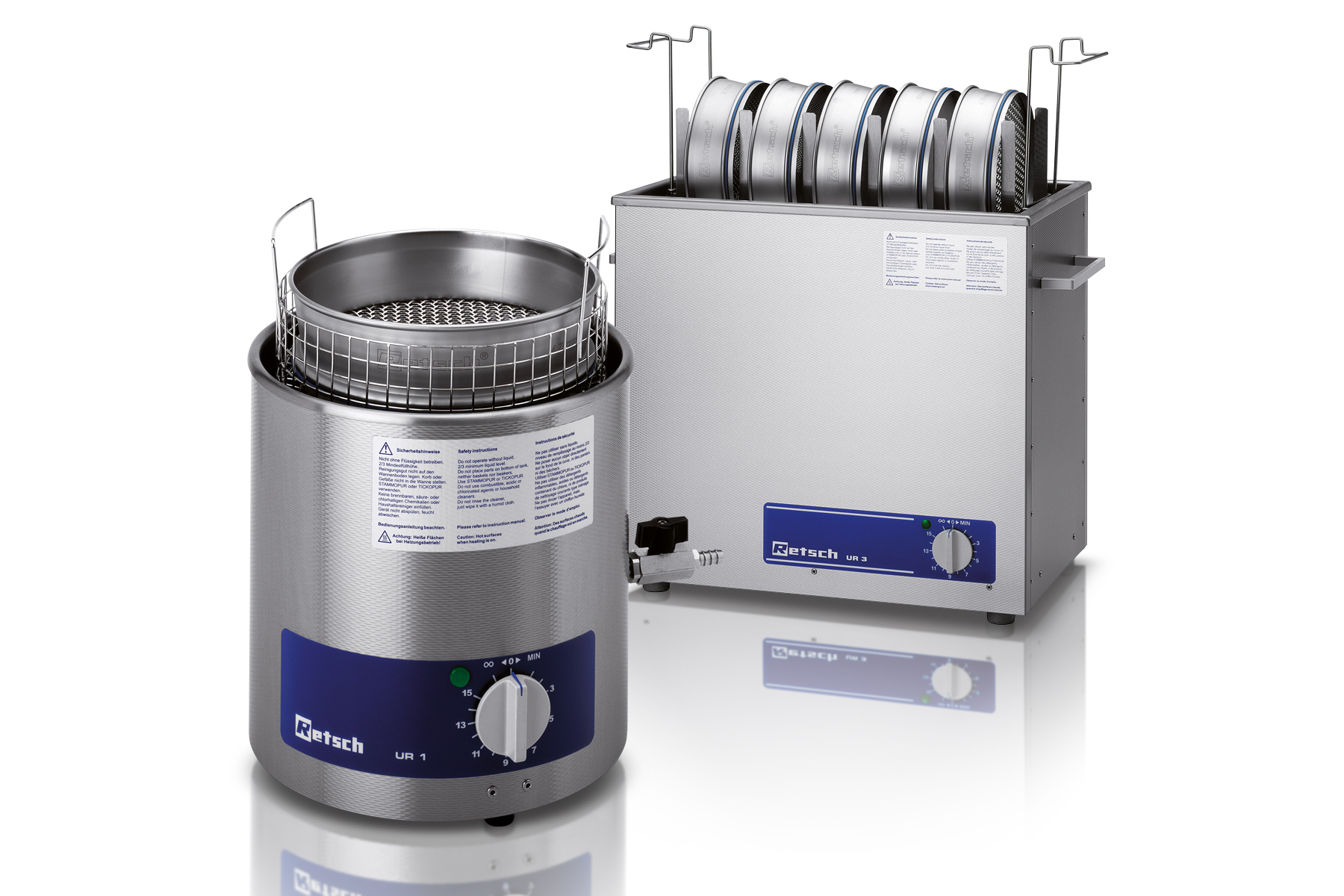

适用于分析筛的彻底清洁和样品及分析筛的快速、温和干燥。

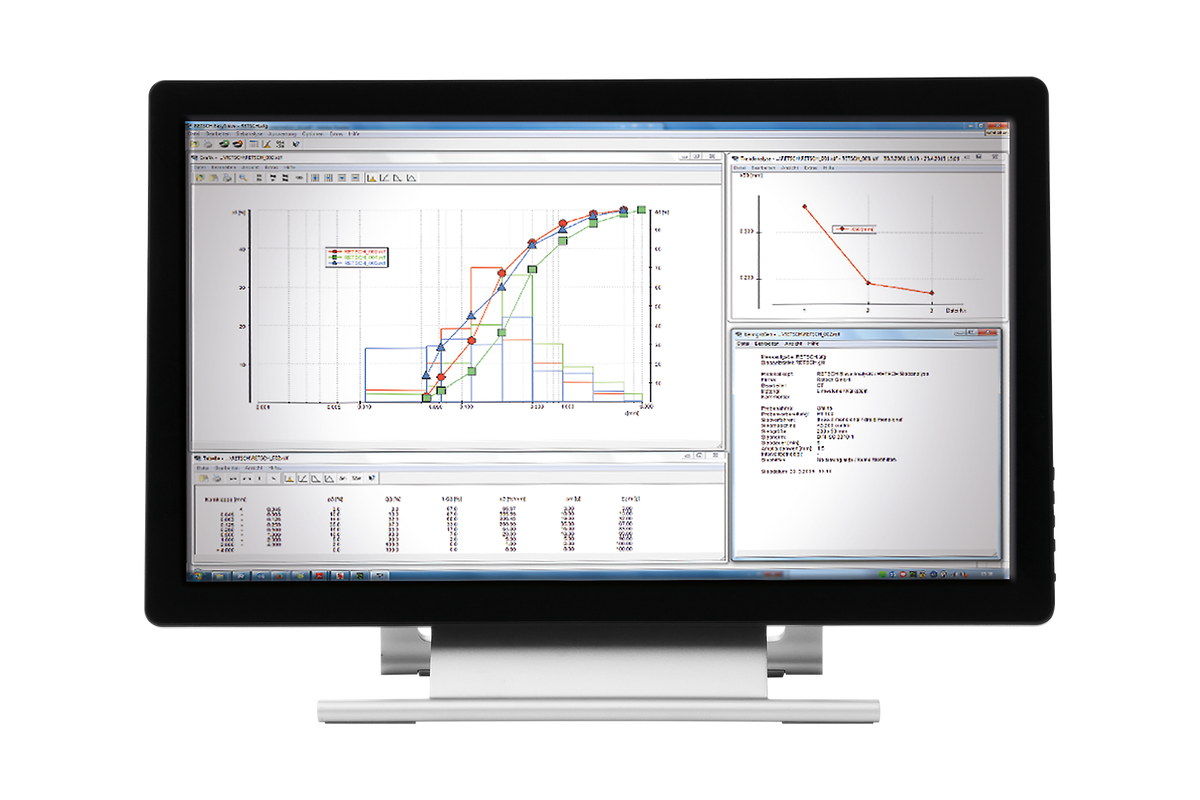

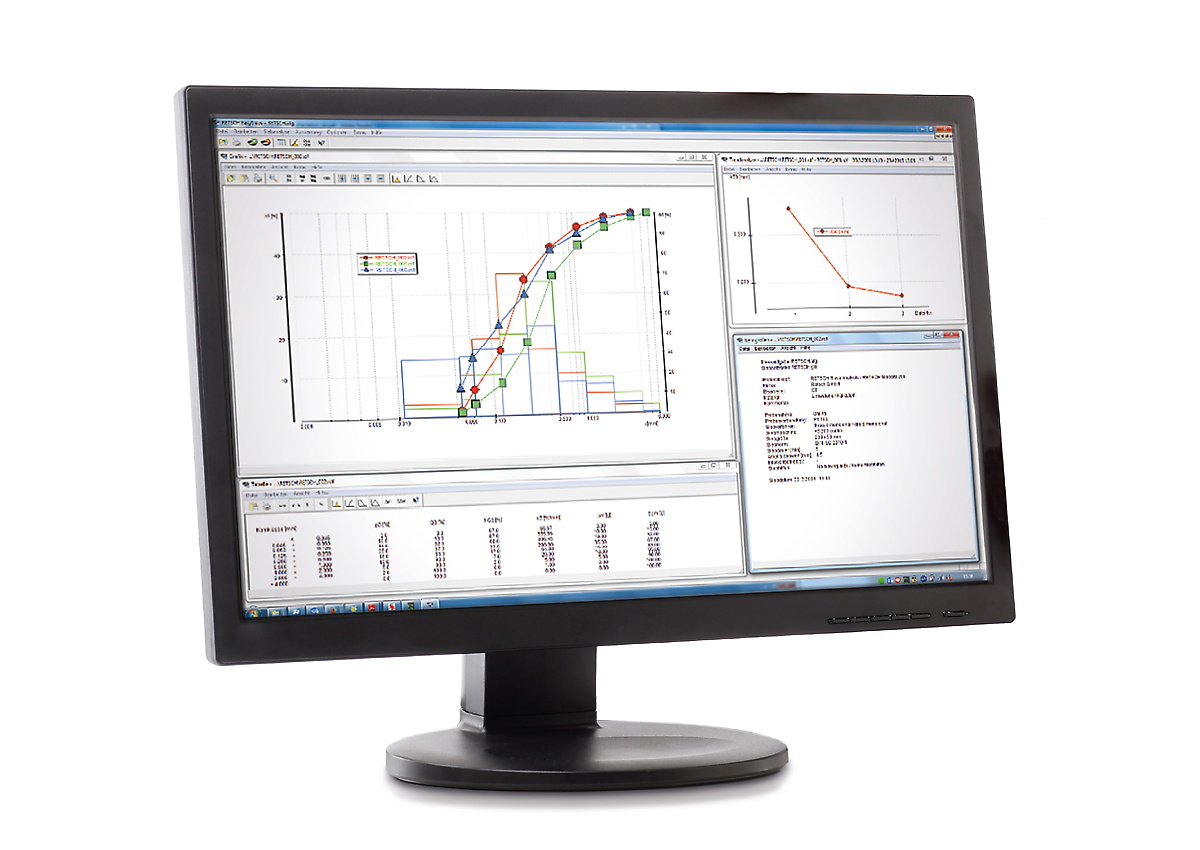

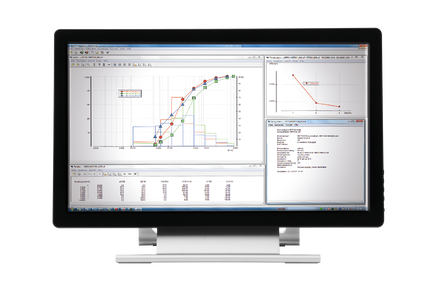

EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11-conform version.
RETSCH's vibratory sieve shakers are ideally suited for separation, fractioning and particle size determination of cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils and washing powder.
肥料
土壤
谷类食物
建筑原料
为了找到最好的解决方案,请访问我们的应用数据库。
所有AS 200 系列机型均采用电磁驱动动力。这是RETSCH 的一项专利技术(EP 0642844)。这种驱动动力能产生三维的抛掷运动效果,使得筛分物能均一分布运动在整个筛分截面上。这一技术为您的筛分带来:高负荷性、宁静的运行过程和高效率——在较短的时间内产生更高的分离精度。
应用 | 分离、分级、确定粒径 |
应用领域 | 农业, 化学 / 合成材料, 医药品, 地质 / 冶金, 工程/电子, 建筑原料, 环境 / 资源回收利用, 玻璃/ 陶瓷, 生物, 食物 |
样品特征 | 粉末、松散粒料、悬浮物 |
测量范围* | 20 微米-25 毫米 |
筛分运动形式 | 三维抛掷运动 |
最大负载 | 3公斤 |
最大级数 | 9/17 |
最大筛塔质量 | 4公斤 |
振幅或转速 | digital, 1 - 100% (0 - 3 mm) |
Controlled amplitude | - |
时间显示 | 数字模式,1-99分钟 |
适用于干筛 | 是 |
适用于湿筛 | 是 |
USB 界面 | - |
带检验证/可校准 | - |
可用分析筛直径 | 100 mm / 200 mm / 203 mm (8") |
筛塔最大高度: | 510 mm |
紧固装置 | standard, "comfort", each for wet and dry sieving |
防护类型 | IP 21 |
电源数据: | 不同电压 |
电源接头: | 单相 |
机体尺寸 (宽x高x纵深) | 417 x 212 x 384 mm |
净重 | 约35公斤 |
标准 | CE |
保留技术变更和出错的权利
