该型号的微处理器控制测量和控制单元可确保恒定的振动高度,即使在不同的 AS 200 控制振动器中,结果的重现性也能达到 100% 。RETSCH 的这款产品有一个与众不同的特点:它可以设置筛子加速度,而不是振动高度,这与电源频率无关。加上可以进行校准,这就确保了筛分结果在全球范围内的可比性和可重复性。因此,符合 DIN EN ISO 9001 标准的所有测试材料监控要求。

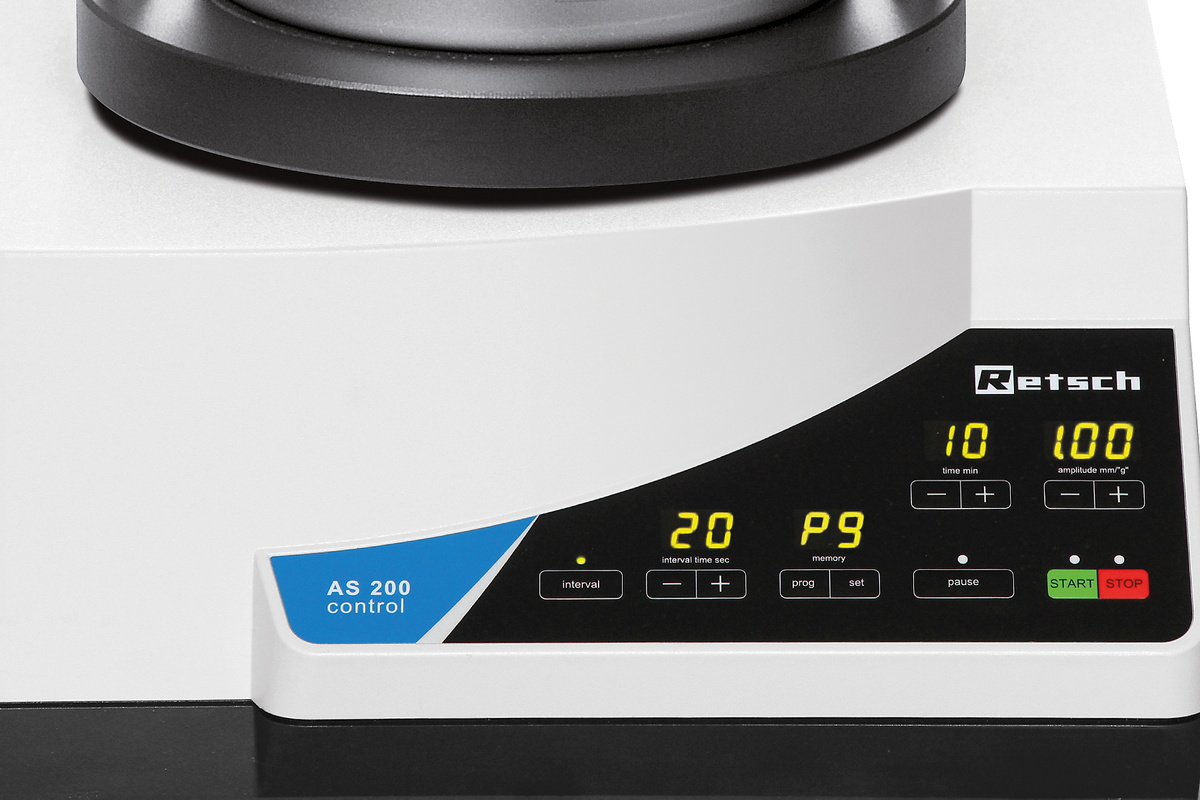

所有筛分参数--振动高度、时间和间隔--均以数字方式设置、显示和监控,这使得 AS 200 控制器的操作非常方便快捷。可存储多达 99 个标准操作程序 (SOP),用于常规分析。

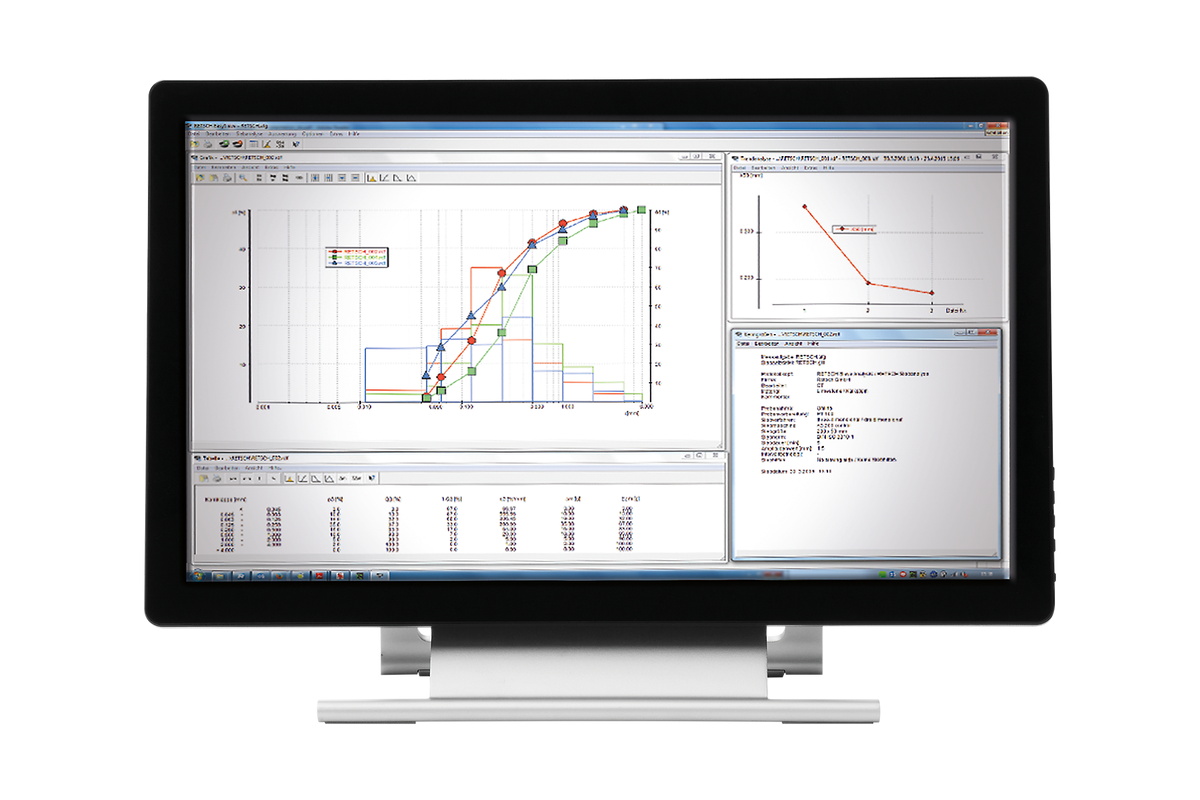

通过集成接口,仪器可以连接到个人电脑,并使用评估软件 EasySieve® 进行控制。用户可以通过该软件方便、准确地完成整个筛分过程,并按照标准进行后续记录;
产品视频
"软件和机器使用十分便捷。你可以将筛子放在洗碗机中。"
M. Becker
Haribo Produktions GmbH
"
Daniel Yorio
Canadian National Energy Alliance
"
Diane Mee
Doff Portland Ltd.
"这些振动筛分仪使用寿命长,几乎不需要维护。在我们每天都使用的情况下,有几个使用时间已经超过10年了。 "
Heidi Bartel
Microvention
"
Tamara Djordjevic
Profi Lab
"我们使用Retsch AS 200振动筛分仪已有20多年了。这台仪器使用可靠而且操作便捷。我们每年校准一次,这台仪器从来没有任何不合规的误差。 "
Tiffany Brenner
PPG
AS 200Control振动筛分仪操作方便。所有筛分参数–振动高度、时间、间隔–均以数字方式设置、显示和监控。可存储多达99个参数组合(SOP)用于常规分析。通过集成接口,仪器可以连接到PC,并通过评估软件EasySieve®进行控制。该程序使用户可以方便、准确地控制整个筛分过程和后续文件。

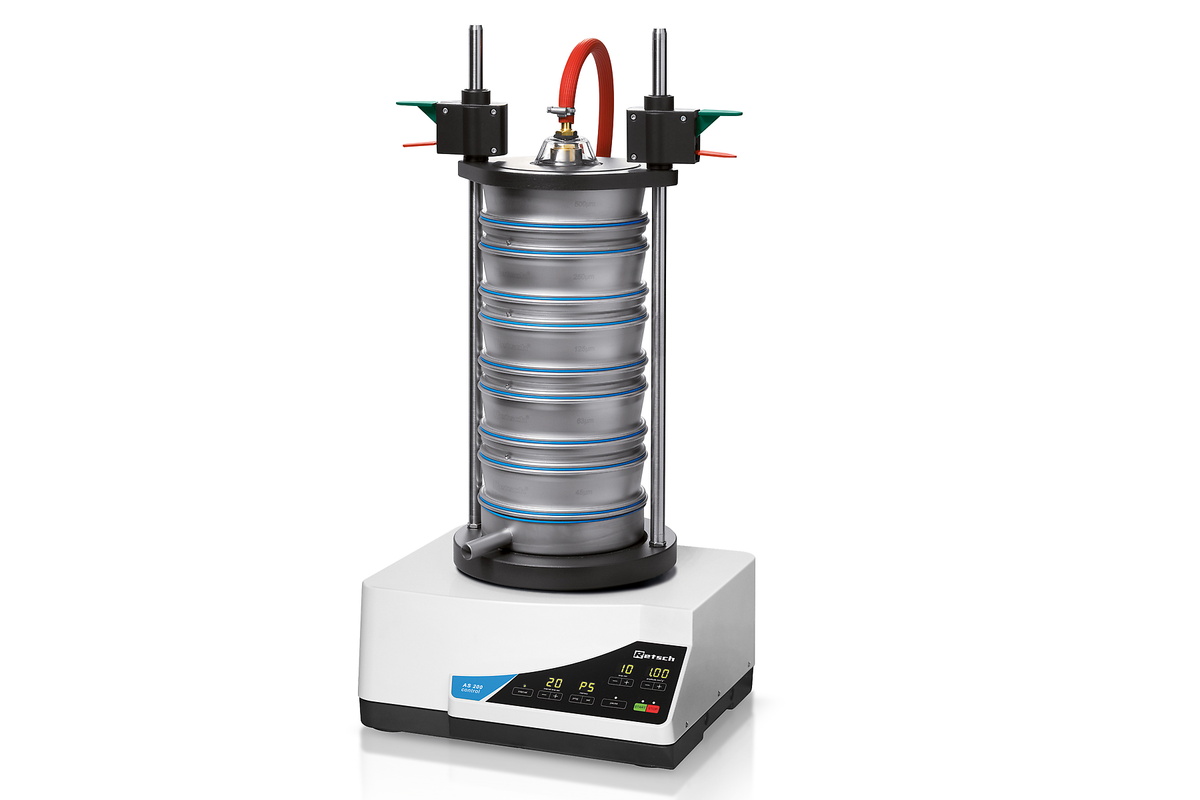

在许多应用中,湿法筛分是最佳解决方案,例如,当待测材料为悬浮液时,或当需要筛分易团聚的极细样品(<45μm)时。所有来自RETSCH的振动筛分仪可用于湿筛。有特殊配件,如带有喷嘴的紧固盖和带有出口的收集盘。通过在分析筛之间放置RETSCH的通气环,气体可以排出,而不让液体或样品材料溢出。
Control系列的振动筛分仪可配备多种附件,以满足丰富的应用要求。

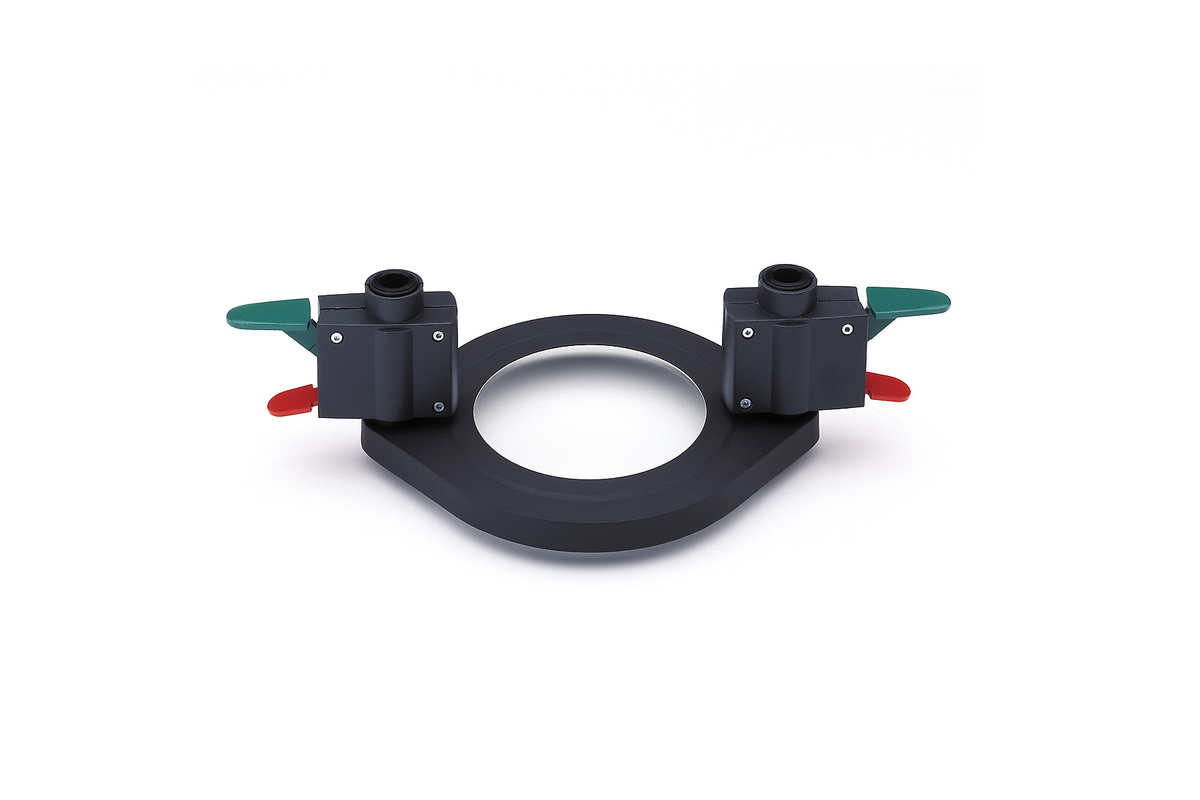

使用莱驰紧固装置,可安全、快速、方便地将分析筛夹紧在振动筛上,“舒适型”紧固装置是特别方便用户和节省时间。
收集盘、中间盘、中间环和分析筛盖。
带喷嘴的夹紧盖、带出口的收集盘、通气环。
Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).链环、刷子、立方体、球(例如,当筛分小于100μm的颗粒并保持筛网自由通过时,用于减少团聚)。
我们为“Control”振动筛分仪提供IQ/OQ文件,以支持客户的IQ/OQ认证。
适用于分析筛的彻底清洁和样品及分析筛的快速、温和干燥。
振动筛分仪常用于水泥熟料、化学品、咖啡、建筑材料、肥料、填料、面粉、谷物、金属粉、矿物、坚果、塑料、沙子、种子、土壤、洗衣粉等的粒度分析。
咖啡
土壤
谷类食物
大豆
为了找到最好的解决方案,请访问我们的应用数据库。
In soil analysis, sieving with the AS 200 control prevents distortion of analytical results, reliably separates rocks from soil samples, and simultaneously minimizes equipment damage. Users achieve time-saving and precise analytical results, while maximizing the service life of their devices.
Unbeatable Together: The AS 200 control in combination with the BB 50 jaw crusher is the proven solution for processing large agglomerates from soil samples and can handle up to nine samples in one batch.

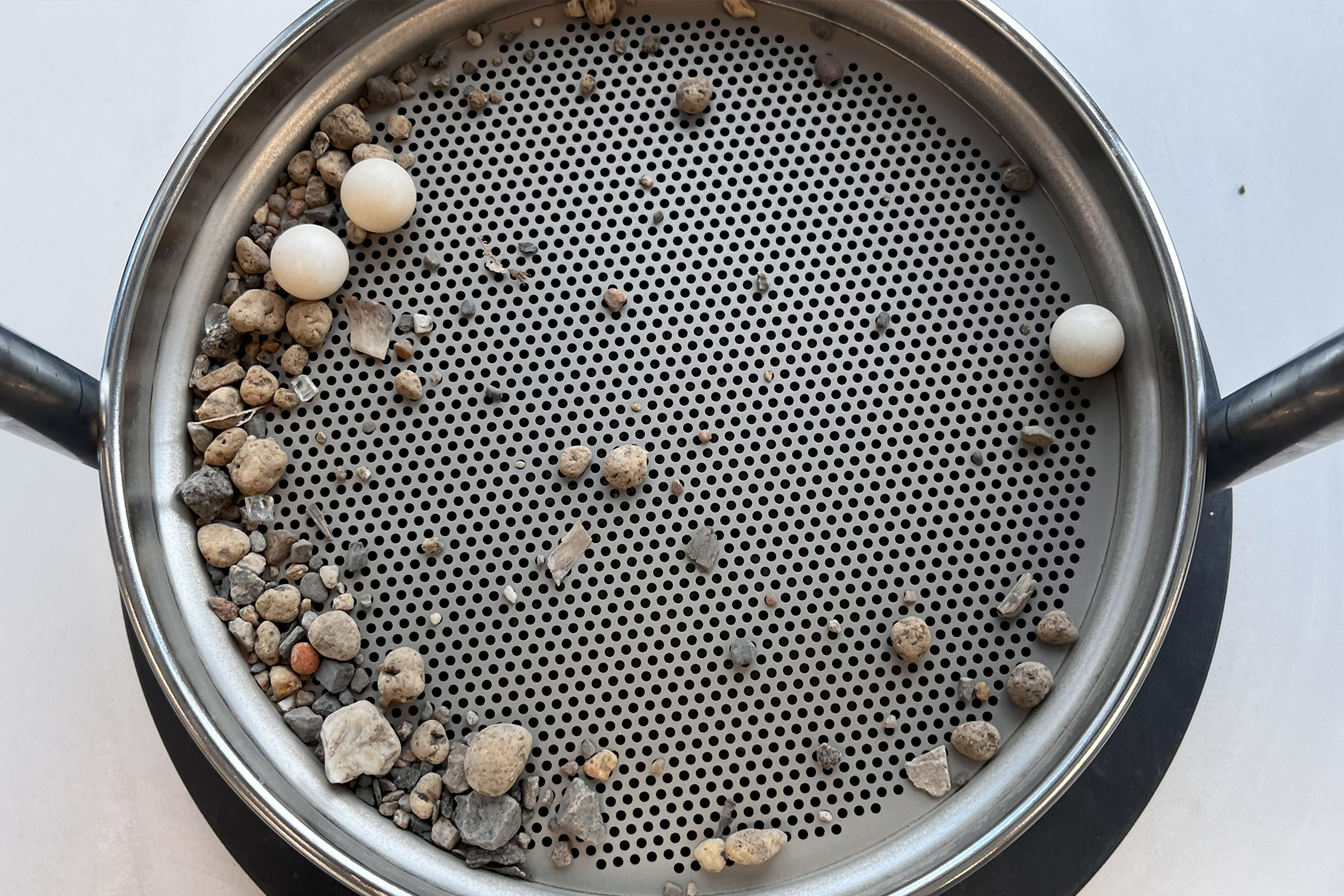

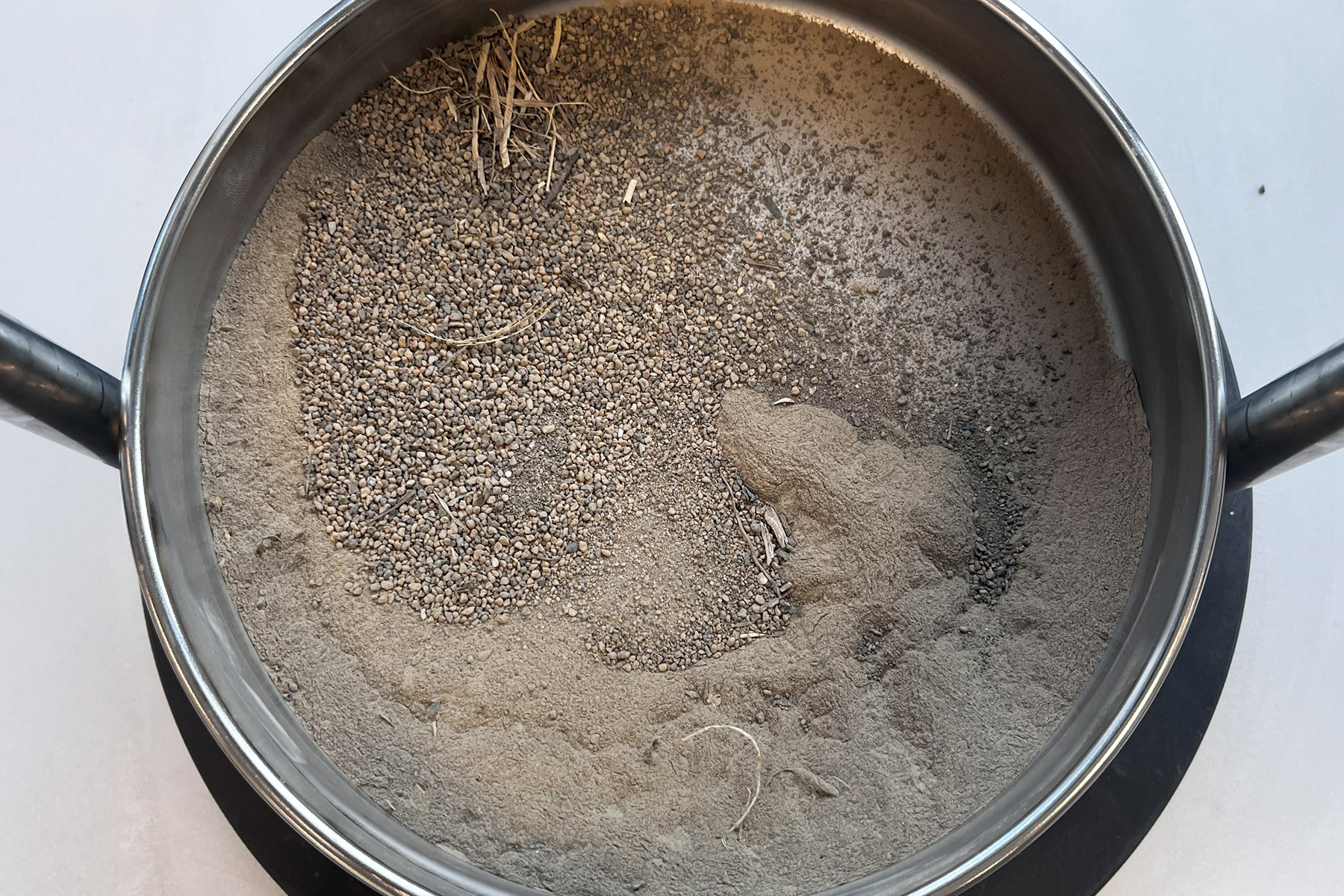

A 120 g soil sample with agglomerates up to 15 mm in diameter was processed using a 200 x 25 mm sieve with 2 mm round holes.

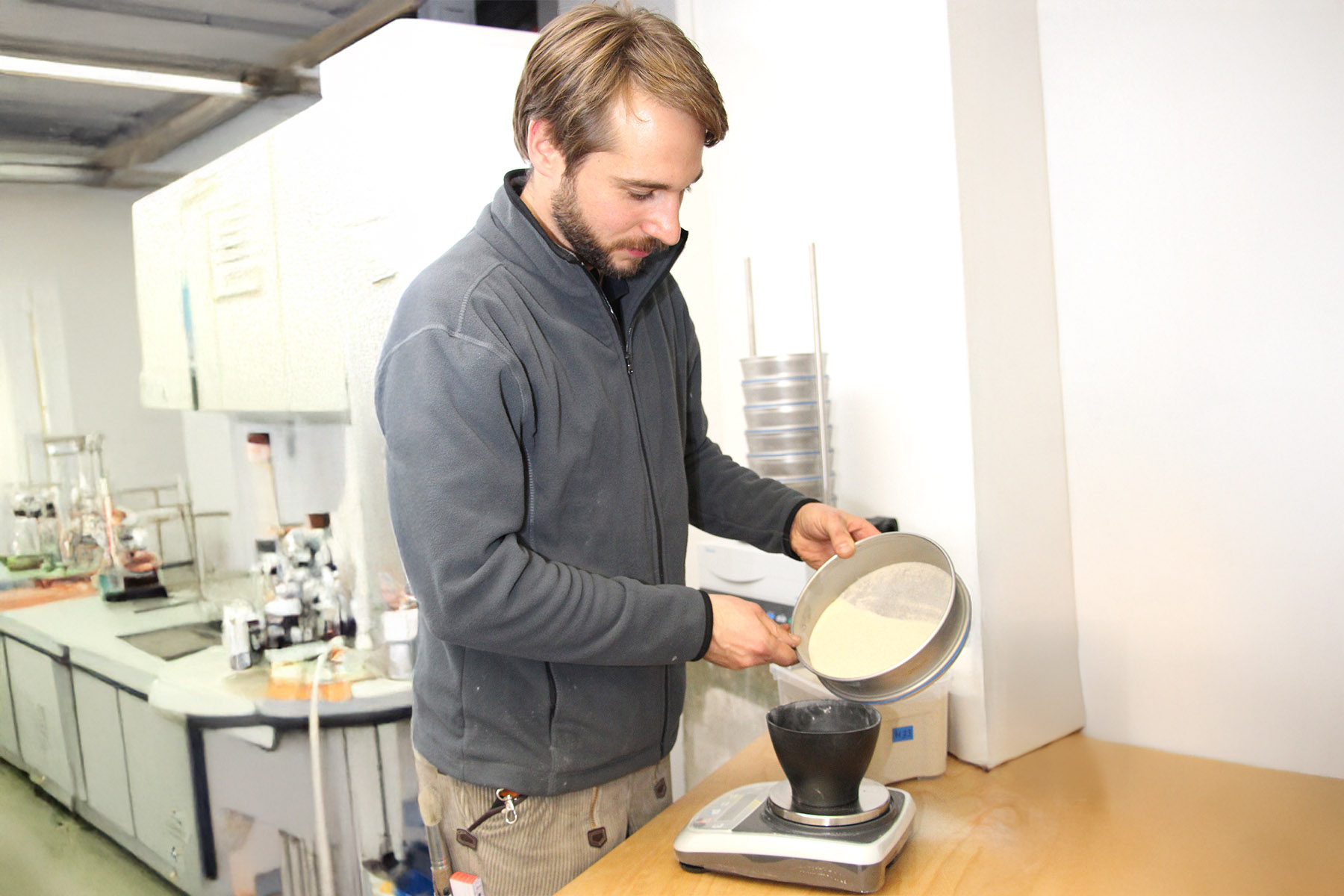

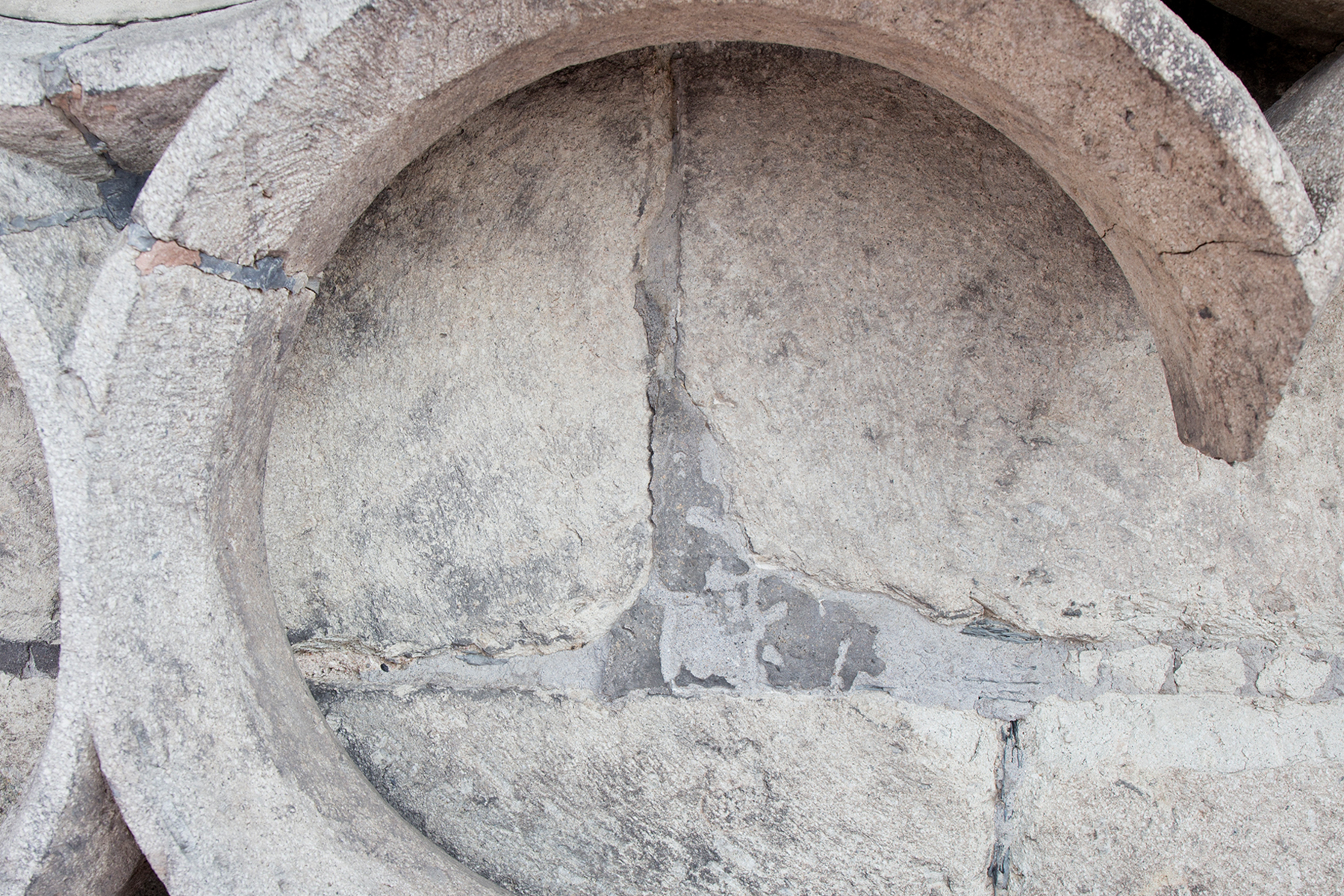

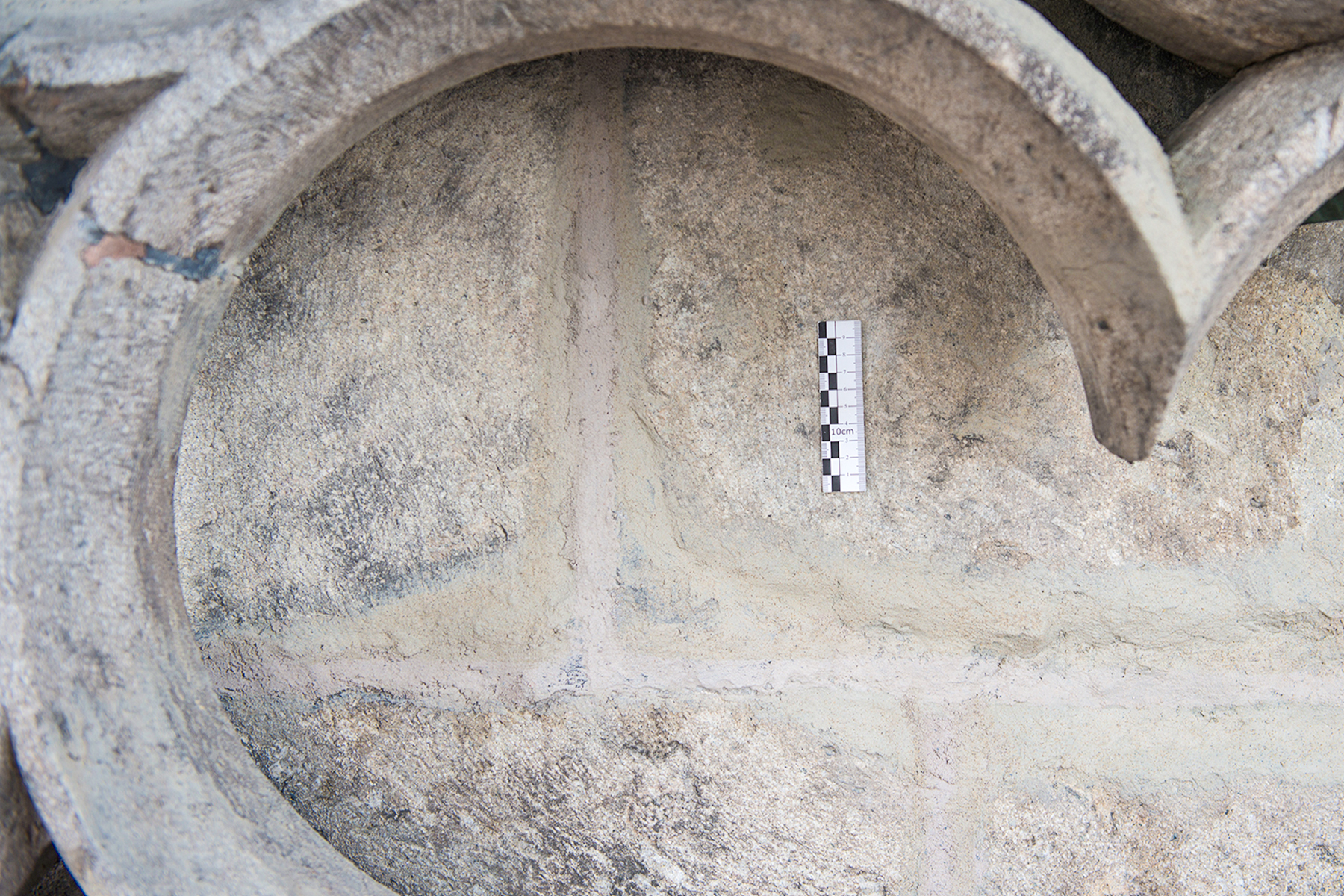

The Cologne Cathedral workshop has relied on the AS 200 control for many years to precisely determine particle size distribution in mortar. Various particle fractions can be accurately separated and combined. The goal is to develop mortar with optimal structure and color that almost perfectly replicates the original stone. The use of the AS 200 control eliminates manual sorting, making mortar production more reproducible and efficient.
The result: mortar with the physical properties to fill cracks and simultaneously prevent water penetration.

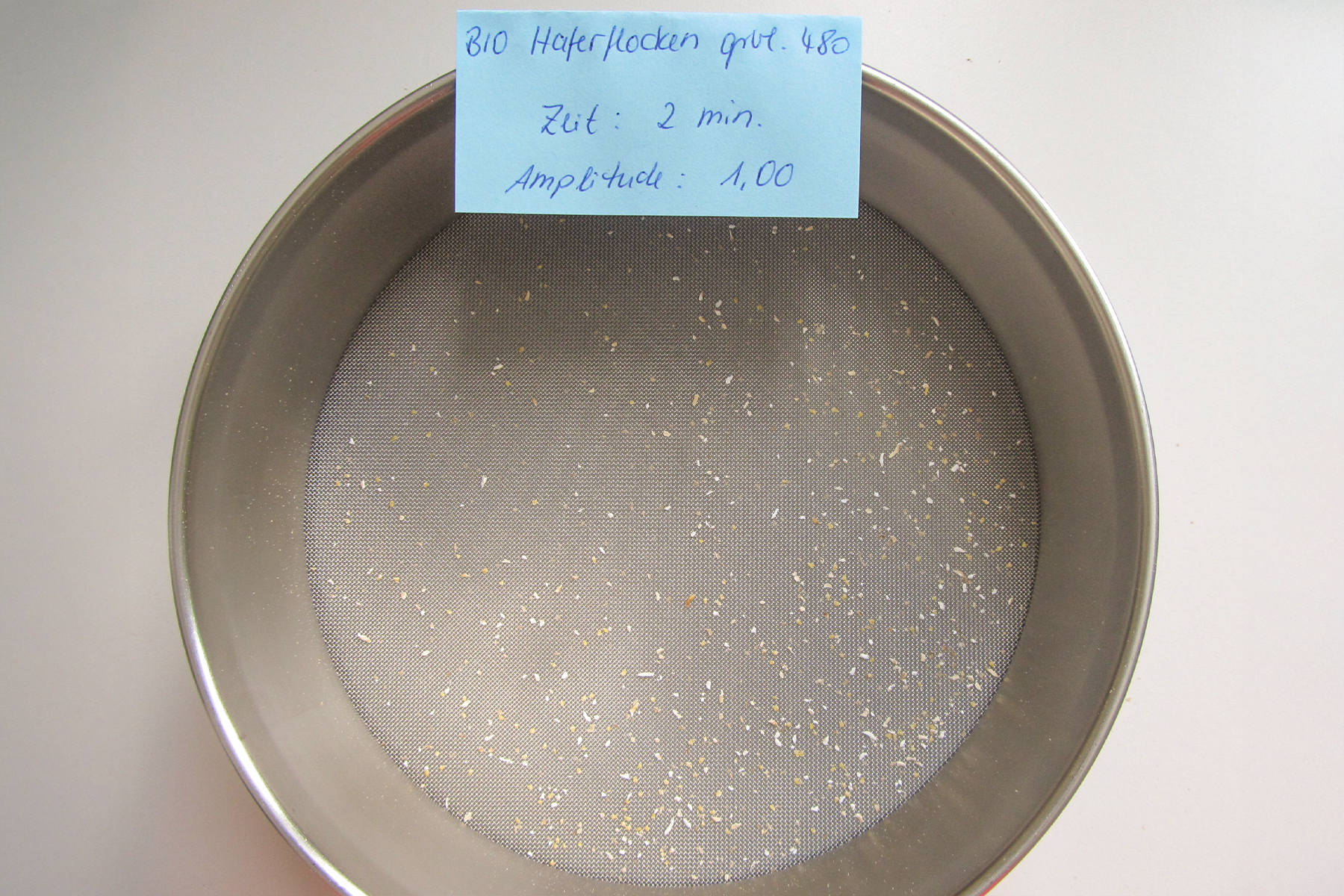

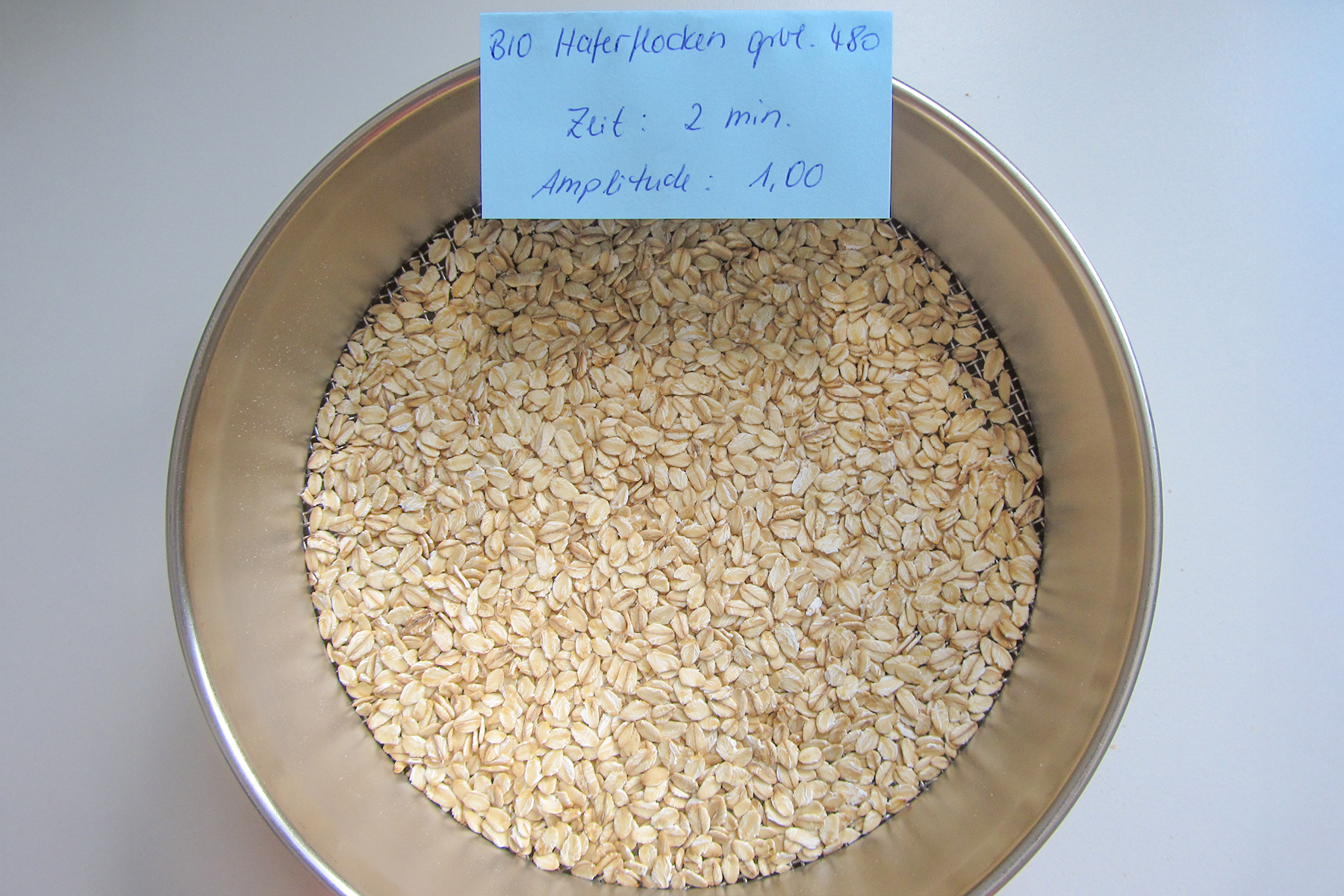

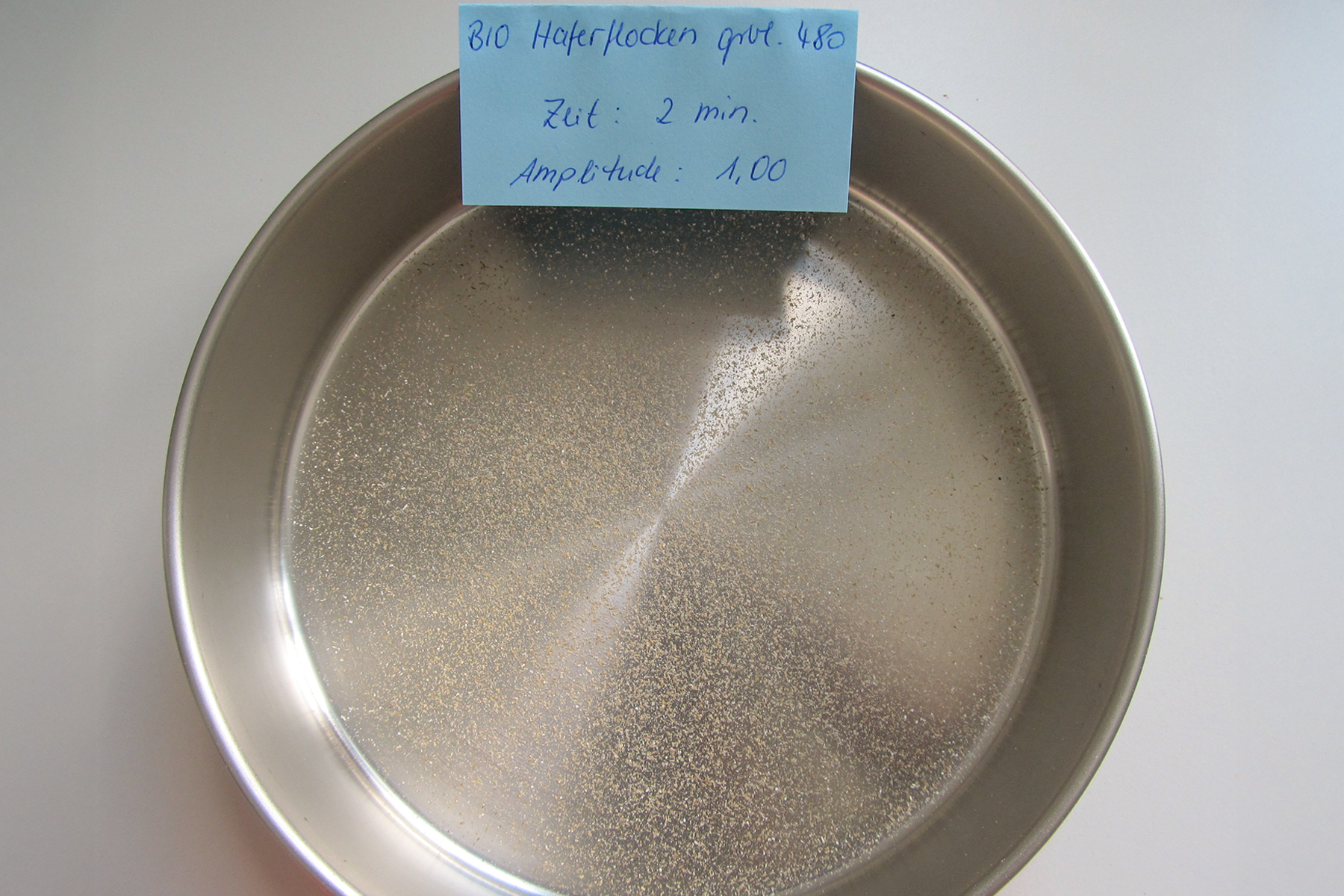

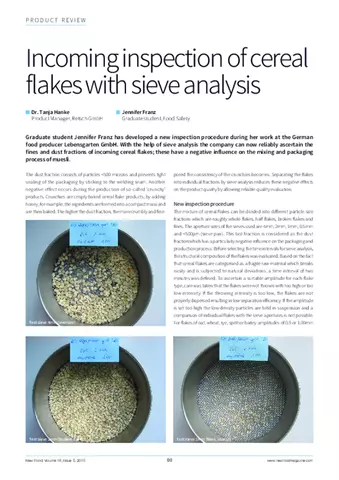

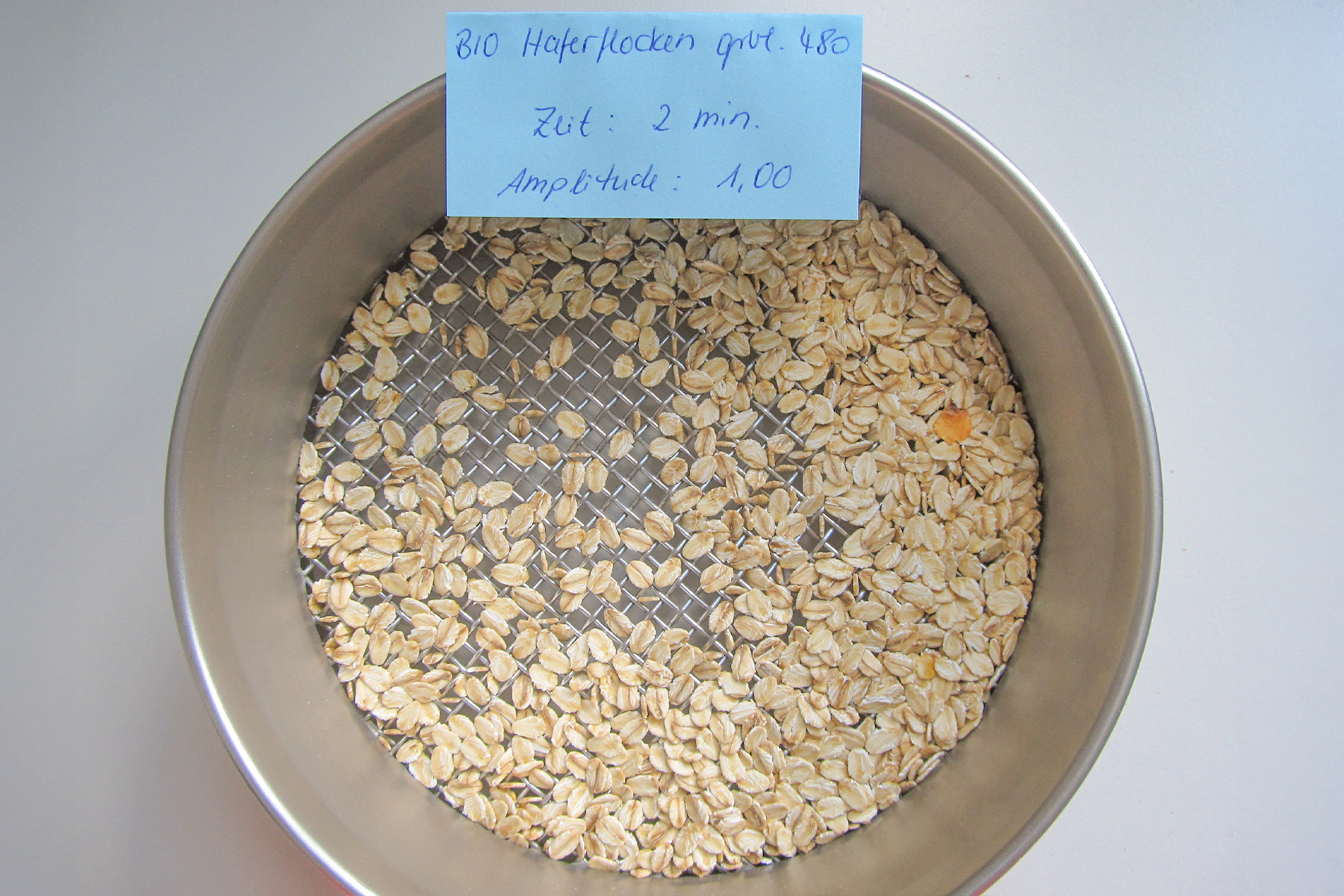

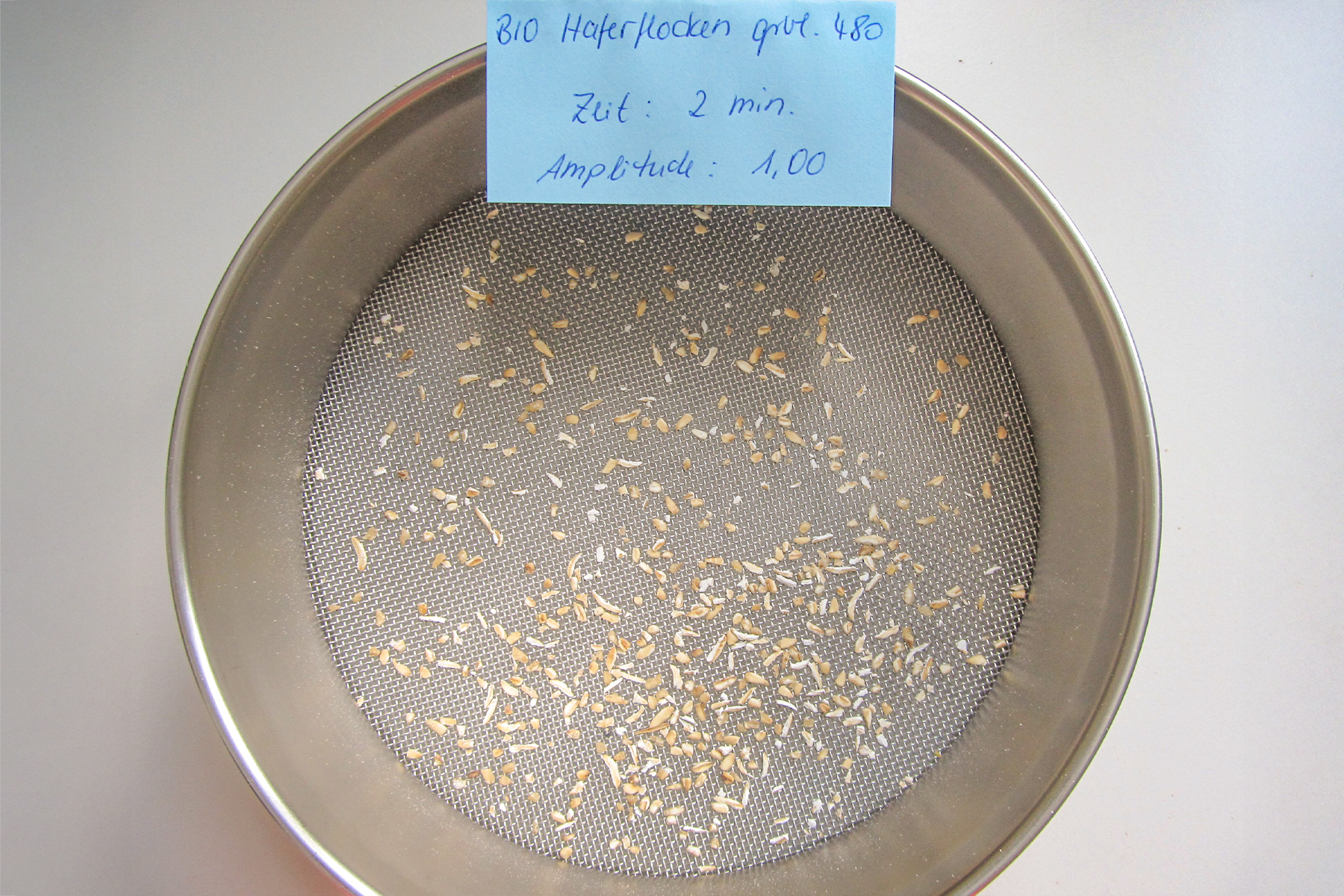

At Lebensgarten GmbH, the quality of organic cereal flakes is ensured through precise incoming goods inspections. Sieving analysis separates the flakes into different particle size fractions. Special importance is given to the dust fraction of the product with a particle size < 500 μm. This can impair the sealing of packaging on the one hand and negatively affect the consistency of crunchy products on the other.
The patented electromagnetic drive and the three-dimensional throwing motion of the AS 200 control ensure even distribution and optimal separation. Thanks to flexibly adjustable parameters such as amplitude and hole size, various types of flakes can be precisely sieved – ideal for checking raw material quality regarding dust and fine fractions and ensuring high quality in end products.
AS 200系列的所有振动筛分仪均采用莱驰(EP 0642844)专利的电磁驱动装置。该驱动器产生一个三维抛掷运动,将要筛分的产品均匀地移动到整个分析筛表面上。优点:应力强,操作极为平稳,筛分时间短,分离效率高。
应用 | 分离、分级、确定粒径 |
应用领域 | 农业, 化学 / 合成材料, 医药品, 地质 / 冶金, 工程/电子, 建筑原料, 环境 / 资源回收利用, 玻璃/ 陶瓷, 生物, 食物 |
样品特征 | 粉末、松散粒料、悬浮物 |
测量范围* | 20 微米-25 毫米 |
筛分运动形式 | 三维抛掷运动 |
最大负载 | 3公斤 |
最大级数 | 11 / 22 |
最大筛塔质量 | 6 kg |
振幅或转速 | digital, 0.20 – 3.00 mm |
Controlled amplitude | 是 |
筛底加速度 | 1.0-15.1克 |
时间显示 | 数字模式,1-99分钟 |
间歇驱动 | 1 - 99 s |
可存储运行模式 | 99 |
适用于干筛 | 是 |
适用于湿筛 | 是 |
USB 界面 | 是 |
带检验证/可校准 | 是 |
可用分析筛直径 | 100 mm / 200 mm / 203 mm (8") |
筛塔最大高度: | 620 mm |
紧固装置 | standard, "comfort", each for wet and dry sieving |
防护类型 | IP 21 |
电源数据: | 100-240 V, 50/60 Hz |
电源接头: | 单相 |
机体尺寸 (宽x高x纵深) | 417 x 212 x 384 mm |
净重 | 约35公斤 |
标准 | CE |
