Accessories for test sieves (pans, rings, lids)



For test sieves 100 mm Ø

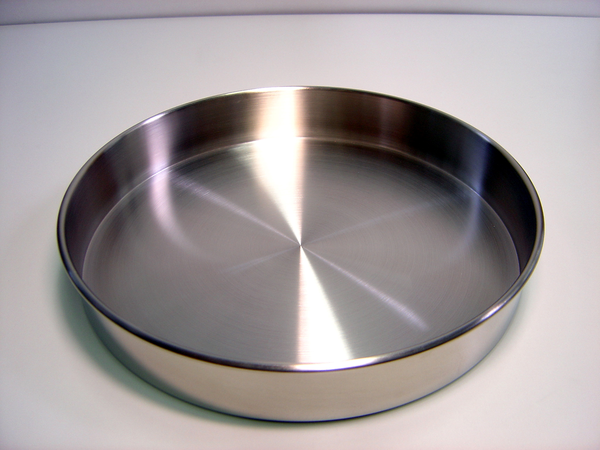

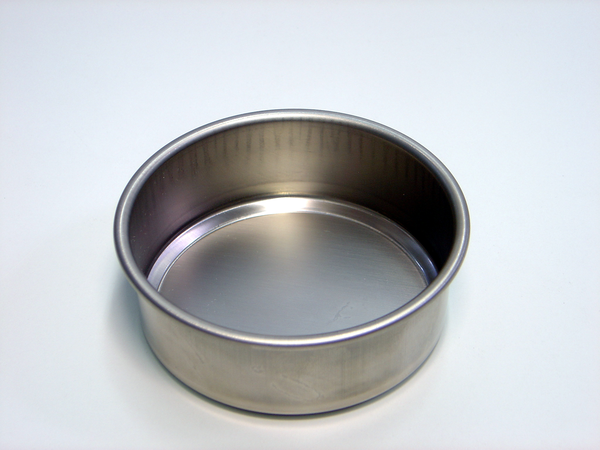

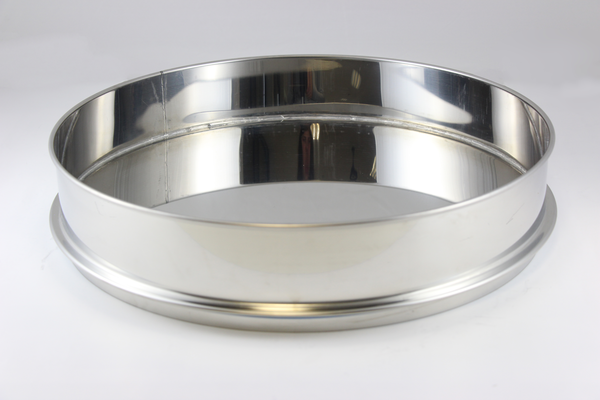

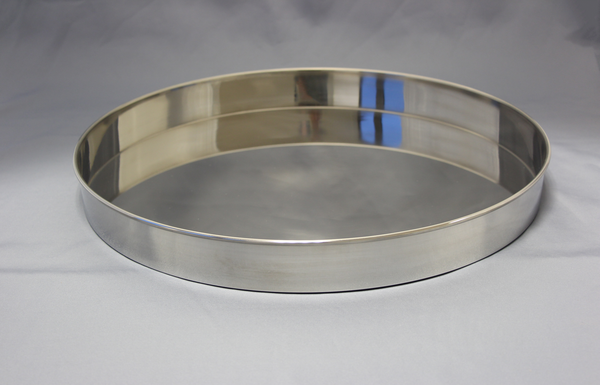

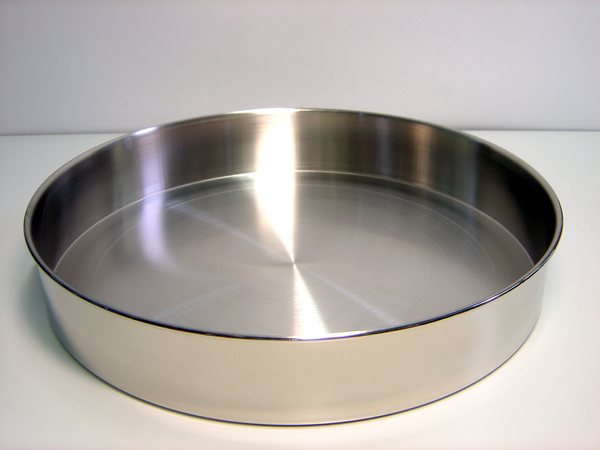

60.010.000100收集盘, 不锈钢, 直径100毫米, 高40毫米

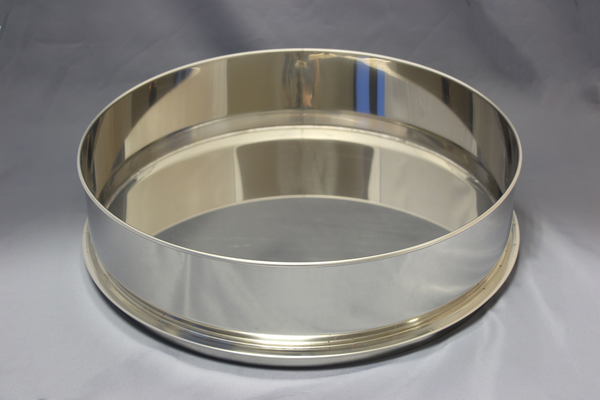

60.220.000100间隔盘, 不锈钢, 直径100毫米, 高40毫米

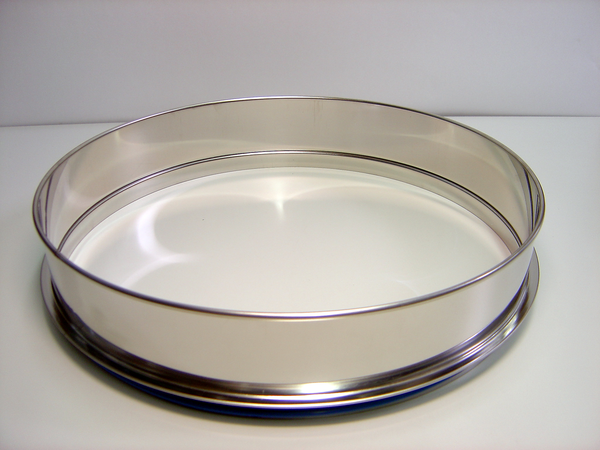

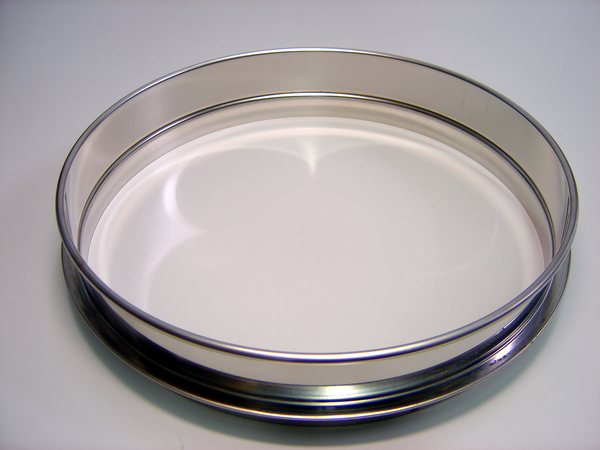

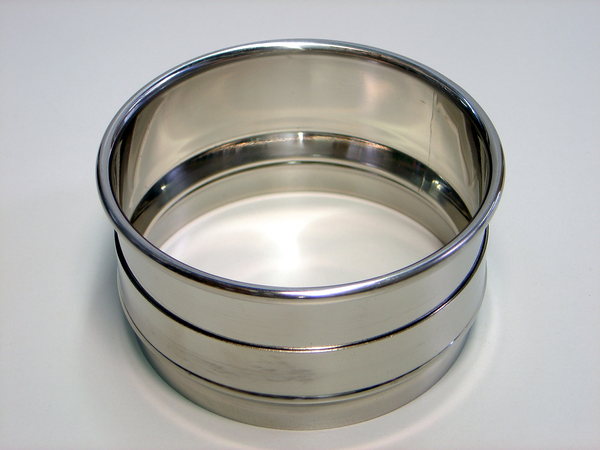

60.935.000100中间环, 不锈钢, 直径100毫米, 高40毫米

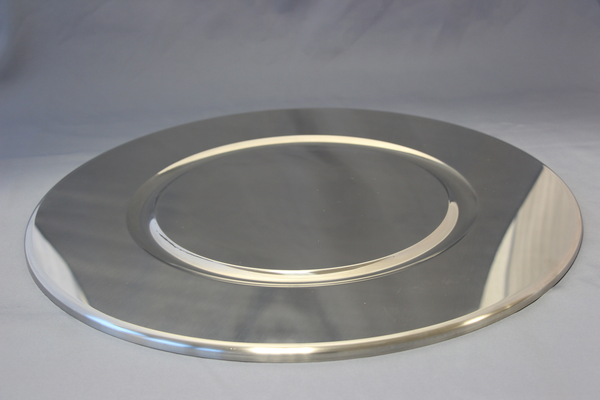

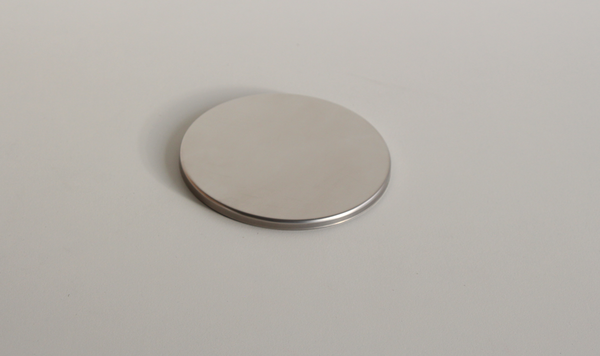

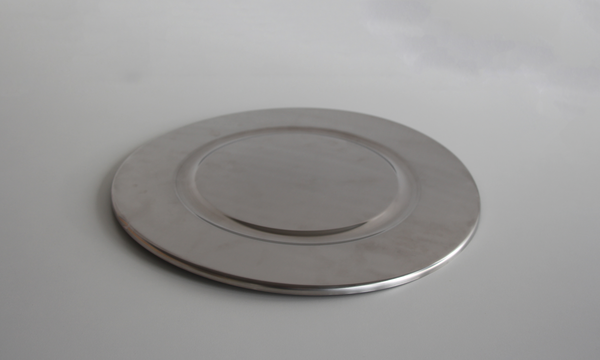

60.107.000100分析筛顶盖, 不锈钢, 直径100毫米

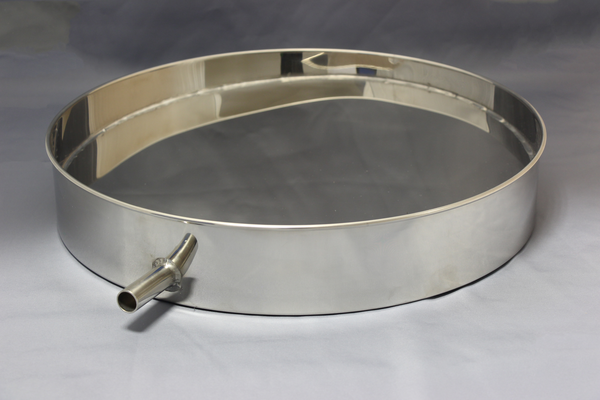

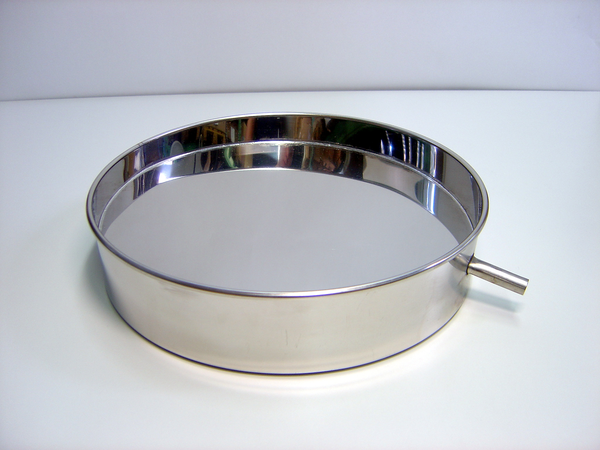

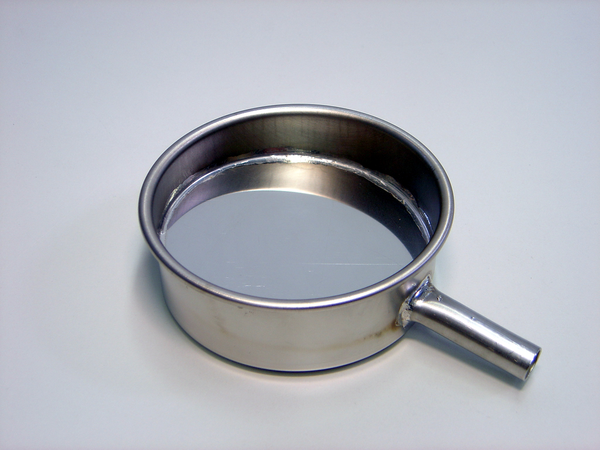

60.010.100100带导出口的接收盘, 不锈钢, 直径100毫米, 高40毫米

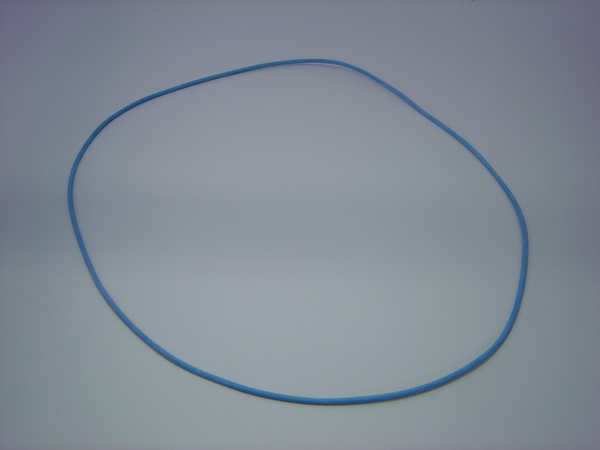

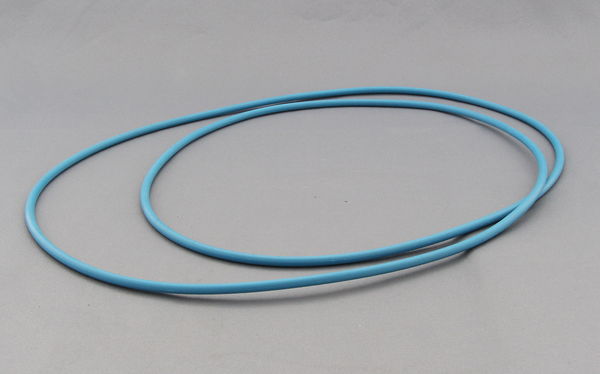

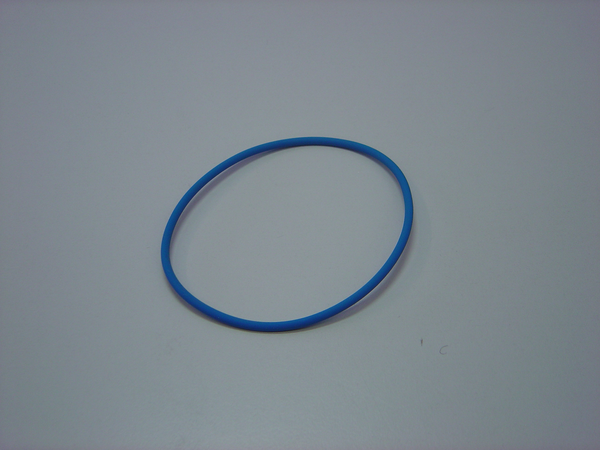

05.114.0045用于分析筛的O型环, 直径100毫米


For test sieves 305 mm Ø

60.010.000305收集盘, 不锈钢, 直径305毫米, 高40毫米
69.230.0050间隔盘, 不锈钢, 直径305毫米, 高40毫米
60.935.000305中间环, 不锈钢, 直径305毫米, 高40毫米
60.107.000305分析筛顶盖, 不锈钢, 直径305毫米
69.430.0050带导出口的接收盘, 不锈钢, 直径305毫米, 高56毫米

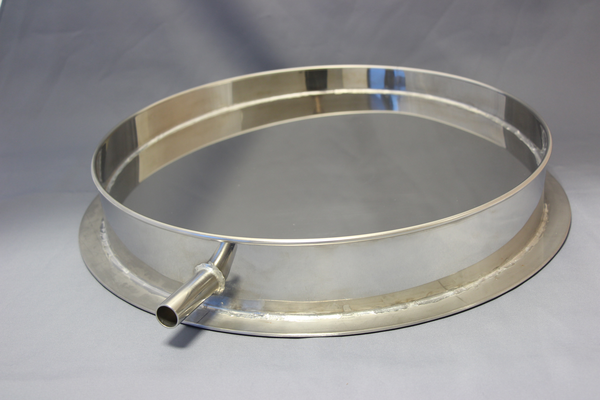

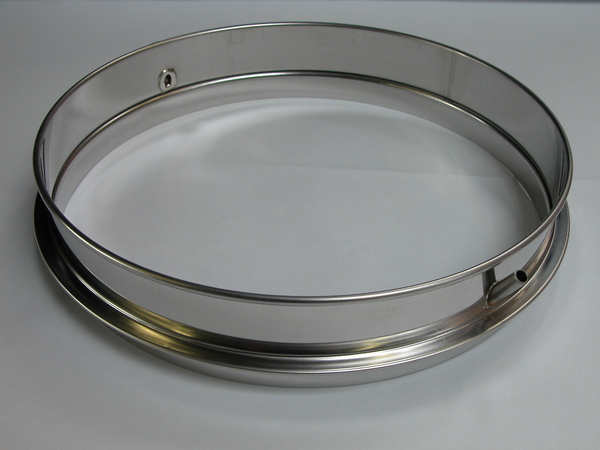

69.321.0050湿筛排气环, 不锈钢, 直径305毫米, 高40毫米

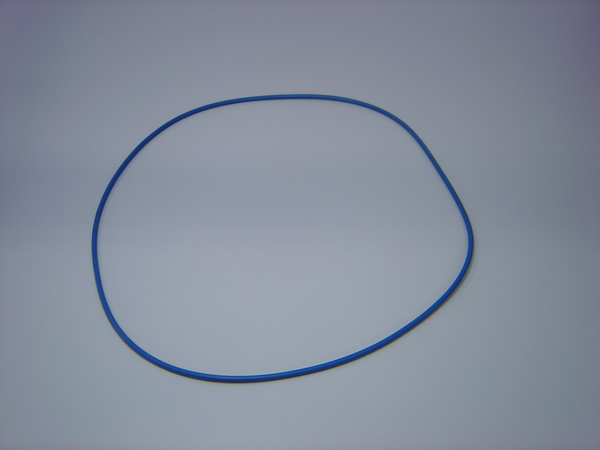

05.114.0047用于分析筛的O型环, 直径305毫米


For test sieves 400 mm Ø

60.010.000400收集盘, 不锈钢, 直径400毫米, 高65毫米
60.220.000400间隔盘, 不锈钢, 直径400毫米, 高65毫米
60.935.000400中间环, 不锈钢, 直径400毫米, 高65毫米
60.107.000400分析筛顶盖, 不锈钢, 直径400毫米
69.440.0070带导出口的接收盘, 不锈钢, 直径400毫米, 高70毫米
69.421.000400湿筛排气环, 不锈钢, 直径400毫米, 高65毫米
05.114.0048用于分析筛的O型环, 直径400毫米


For test sieves 450 mm Ø

60.010.000450收集盘, 不锈钢, 直径450毫米, 高50毫米
60.220.000450间隔盘, 不锈钢, 直径450毫米, 高100毫米
60.935.000450中间环, 不锈钢, 直径450毫米, 高100毫米
69.545.0050分析筛顶盖, 不锈钢, 直径450毫米
69.445.0084带导出口的接收盘, 不锈钢, 直径450毫米, 高85毫米
69.421.000450湿筛排气环, 不锈钢, 直径450毫米, 高100毫米
05.114.0012用于分析筛的O型环, 直径450毫米


分析筛



Test Sieves ø 100 mm - 40 mm height - ISO 3310/1 - stainless steel / wire gauze

# mm# mesh no.øheightstandard
60.106.000020
20 µm-100 mm40 mmISO 3310/1
60.106.000025
25 µm-100 mm40 mmISO 3310/1
60.106.000032
32 µm-100 mm40 mmISO 3310/1
60.106.000036
36微米-100 mm40 mmISO 3310/1
60.106.000038
38微米-100 mm40 mmISO 3310/1
60.106.000040
40 µm-100 mm40 mmISO 3310/1
60.106.000045
45微米-100 mm40 mmISO 3310/1
60.106.000050
50 µm-100 mm40 mmISO 3310/1
60.106.000053
53微米-100 mm40 mmISO 3310/1
60.106.000056
56微米-100 mm40 mmISO 3310/1
60.106.000063
63 µm-100 mm40 mmISO 3310/1
60.106.000071
71微米-100 mm40 mmISO 3310/1
60.106.000075
75微米-100 mm40 mmISO 3310/1
60.106.000080
80 µm-100 mm40 mmISO 3310/1
60.106.000090
90微米-100 mm40 mmISO 3310/1
60.106.000100
100 µm-100 mm40 mmISO 3310/1
60.106.000106
106微米-100 mm40 mmISO 3310/1
60.106.000112
112微米-100 mm40 mmISO 3310/1
60.106.000125
125 µm-100 mm40 mmISO 3310/1
60.106.000140
140微米-100 mm40 mmISO 3310/1
60.106.000150
150微米-100 mm40 mmISO 3310/1
60.106.000160
160 µm-100 mm40 mmISO 3310/1
60.106.000180
180微米-100 mm40 mmISO 3310/1
60.106.000200
200 µm-100 mm40 mmISO 3310/1
60.106.000212
212微米-100 mm40 mmISO 3310/1
60.106.000224
224微米-100 mm40 mmISO 3310/1
60.106.000250
250 µm-100 mm40 mmISO 3310/1
60.106.000280
280微米-100 mm40 mmISO 3310/1
60.106.000300
300微米-100 mm40 mmISO 3310/1
60.106.000315
315 µm-100 mm40 mmISO 3310/1
60.106.000355
355微米-100 mm40 mmISO 3310/1
60.106.000400
400 µm-100 mm40 mmISO 3310/1
60.106.000425
425微米-100 mm40 mmISO 3310/1
60.106.000450
450微米-100 mm40 mmISO 3310/1
60.106.000500
500 µm-100 mm40 mmISO 3310/1
60.106.000560
560微米-100 mm40 mmISO 3310/1
60.106.000600
600微米-100 mm40 mmISO 3310/1
60.106.000630
630 µm-100 mm40 mmISO 3310/1
60.106.000710
710微米-100 mm40 mmISO 3310/1
60.106.000800
800 µm-100 mm40 mmISO 3310/1
60.106.000850
850微米-100 mm40 mmISO 3310/1
60.106.000900
900微米-100 mm40 mmISO 3310/1
60.106.001000
1.00毫米-100 mm40 mmISO 3310/1
60.106.001120
1.12毫米-100 mm40 mmISO 3310/1
60.106.001180
1.18毫米-100 mm40 mmISO 3310/1
60.106.001250
1.25毫米-100 mm40 mmISO 3310/1
60.106.001400
1.40毫米-100 mm40 mmISO 3310/1
60.106.001600
1.60毫米-100 mm40 mmISO 3310/1
60.106.001700
1.70毫米-100 mm40 mmISO 3310/1
60.106.001800
1.80毫米-100 mm40 mmISO 3310/1
60.106.002000
2.00毫米-100 mm40 mmISO 3310/1
60.106.002240
2.24毫米-100 mm40 mmISO 3310/1
60.106.002360
2.36毫米-100 mm40 mmISO 3310/1
60.106.002500
2.50毫米-100 mm40 mmISO 3310/1
60.106.002800
2.80毫米-100 mm40 mmISO 3310/1
60.106.003150
3.15毫米-100 mm40 mmISO 3310/1
60.106.003350
3.35毫米-100 mm40 mmISO 3310/1
60.106.003550
3.55毫米-100 mm40 mmISO 3310/1
60.106.004000
4.00毫米-100 mm40 mmISO 3310/1
60.106.004500
4.50毫米-100 mm40 mmISO 3310/1
60.106.004750
4.75毫米-100 mm40 mmISO 3310/1
60.106.005000
5.00毫米-100 mm40 mmISO 3310/1
60.106.005600
5.60毫米-100 mm40 mmISO 3310/1
60.106.006300
6.30毫米-100 mm40 mmISO 3310/1
60.106.006700
6.70毫米-100 mm40 mmISO 3310/1
60.106.007100
7.10毫米-100 mm40 mmISO 3310/1
60.106.008000
8.00毫米-100 mm40 mmISO 3310/1
60.106.009000
9.00毫米-100 mm40 mmISO 3310/1
60.106.009500
9.50毫米-100 mm40 mmISO 3310/1
60.106.010000
10.00毫米-100 mm40 mmISO 3310/1
60.106.011200
11.20毫米-100 mm40 mmISO 3310/1
60.106.012500
12.50毫米-100 mm40 mmISO 3310/1
60.106.013200
13.20毫米-100 mm40 mmISO 3310/1
60.106.014000
14.00毫米-100 mm40 mmISO 3310/1
60.106.016000
16.00毫米-100 mm40 mmISO 3310/1
60.106.018000
18.00毫米-100 mm40 mmISO 3310/1
60.106.019000
19.00毫米-100 mm40 mmISO 3310/1
60.106.020000
20.00毫米-100 mm40 mmISO 3310/1
60.106.022400
22.40毫米-100 mm40 mmISO 3310/1
60.106.025000
25.00毫米-100 mm40 mmISO 3310/1
60.106.026500
26.50毫米-100 mm40 mmISO 3310/1
60.106.028000
28.00毫米-100 mm40 mmISO 3310/1
60.106.031500
31.50毫米-100 mm40 mmISO 3310/1
60.106.035500
35.50毫米-100 mm40 mmISO 3310/1
60.106.037500
37.50毫米-100 mm40 mmISO 3310/1
60.106.040000
40.00毫米-100 mm40 mmISO 3310/1
60.106.045000
45.00毫米-100 mm40 mmISO 3310/1


Test Sieves ø 305 mm - 40 mm height - ISO 3310/1 - stainless steel / wire gauze

# mm# mesh no.øheightstandard
60.158.000025
25 µm-305 mm40 mmISO 3310/1
60.158.000032
32 µm-305 mm40 mmISO 3310/1
60.158.000036
36微米-305 mm40 mmISO 3310/1
60.158.000038
38微米-305 mm40 mmISO 3310/1
60.158.000040
40 µm-305 mm40 mmISO 3310/1
60.158.000045
45微米-305 mm40 mmISO 3310/1
60.158.000050
50 µm-305 mm40 mmISO 3310/1
60.158.000053
53微米-305 mm40 mmISO 3310/1
60.158.000056
56微米-305 mm40 mmISO 3310/1
60.158.000063
63 µm-305 mm40 mmISO 3310/1
60.158.000071
71微米-305 mm40 mmISO 3310/1
60.158.000075
75微米-305 mm40 mmISO 3310/1
60.158.000080
80 µm-305 mm40 mmISO 3310/1
60.158.000090
90微米-305 mm40 mmISO 3310/1
60.158.000100
100 µm-305 mm40 mmISO 3310/1
60.158.000106
106微米-305 mm40 mmISO 3310/1
60.158.000112
112微米-305 mm40 mmISO 3310/1
60.158.000125
125 µm-305 mm40 mmISO 3310/1
60.158.000140
140微米-305 mm40 mmISO 3310/1
60.158.000150
150微米-305 mm40 mmISO 3310/1
60.158.000160
160 µm-305 mm40 mmISO 3310/1
60.158.000180
180微米-305 mm40 mmISO 3310/1
60.158.000200
200 µm-305 mm40 mmISO 3310/1
60.158.000212
212微米-305 mm40 mmISO 3310/1
60.158.000224
224微米-305 mm40 mmISO 3310/1
60.158.000250
250 µm-305 mm40 mmISO 3310/1
60.158.000280
280微米-305 mm40 mmISO 3310/1
60.158.000300
300微米-305 mm40 mmISO 3310/1
60.158.000315
315 µm-305 mm40 mmISO 3310/1
60.158.000355
355微米-305 mm40 mmISO 3310/1
60.158.000400
400 µm-305 mm40 mmISO 3310/1
60.158.000425
425微米-305 mm40 mmISO 3310/1
60.158.000450
450微米-305 mm40 mmISO 3310/1
60.158.000500
500 µm-305 mm40 mmISO 3310/1
60.158.000560
560微米-305 mm40 mmISO 3310/1
60.158.000600
600微米-305 mm40 mmISO 3310/1
60.158.000630
630 µm-305 mm40 mmISO 3310/1
60.158.000710
710微米-305 mm40 mmISO 3310/1
60.158.000800
800 µm-305 mm40 mmISO 3310/1
60.158.000850
850微米-305 mm40 mmISO 3310/1
60.158.000900
900微米-305 mm40 mmISO 3310/1
60.158.001000
1.00毫米-305 mm40 mmISO 3310/1
60.158.001120
1.12毫米-305 mm40 mmISO 3310/1
60.158.001180
1.18毫米-305 mm40 mmISO 3310/1
60.158.001250
1.25毫米-305 mm40 mmISO 3310/1
60.158.001400
1.40毫米-305 mm40 mmISO 3310/1
60.158.001600
1.60毫米-305 mm40 mmISO 3310/1
60.158.001700
1.70毫米-305 mm40 mmISO 3310/1
60.158.001800
1.80毫米-305 mm40 mmISO 3310/1
60.158.002000
2.00毫米-305 mm40 mmISO 3310/1
60.158.002240
2.24毫米-305 mm40 mmISO 3310/1
60.158.002360
2.36毫米-305 mm40 mmISO 3310/1
60.158.002500
2.50毫米-305 mm40 mmISO 3310/1
60.158.002800
2.80毫米-305 mm40 mmISO 3310/1
60.158.003150
3.15毫米-305 mm40 mmISO 3310/1
60.158.003350
3.35毫米-305 mm40 mmISO 3310/1
60.158.003550
3.55毫米-305 mm40 mmISO 3310/1
60.158.004000
4.00毫米-305 mm40 mmISO 3310/1
60.158.004500
4.50毫米-305 mm40 mmISO 3310/1
60.158.004750
4.75毫米-305 mm40 mmISO 3310/1
60.158.005000
5.00毫米-305 mm40 mmISO 3310/1
60.158.005600
5.60毫米-305 mm40 mmISO 3310/1
60.158.006300
6.30毫米-305 mm40 mmISO 3310/1
60.158.006700
6.70毫米-305 mm40 mmISO 3310/1
60.158.007100
7.10毫米-305 mm40 mmISO 3310/1
60.158.008000
8.00毫米-305 mm40 mmISO 3310/1
60.158.009000
9.00毫米-305 mm40 mmISO 3310/1
60.158.009500
9.50毫米-305 mm40 mmISO 3310/1
60.158.010000
10.00毫米-305 mm40 mmISO 3310/1
60.158.011200
11.20毫米-305 mm40 mmISO 3310/1
60.158.012500
12.50毫米-305 mm40 mmISO 3310/1
60.158.013200
13.20毫米-305 mm40 mmISO 3310/1
60.158.014000
14.00毫米-305 mm40 mmISO 3310/1
60.158.016000
16.00毫米-305 mm40 mmISO 3310/1
60.158.018000
18.00毫米-305 mm40 mmISO 3310/1
60.158.019000
19.00毫米-305 mm40 mmISO 3310/1
60.158.020000
20.00毫米-305 mm40 mmISO 3310/1
60.158.022400
22.40毫米-305 mm40 mmISO 3310/1
60.158.025000
25.00毫米-305 mm40 mmISO 3310/1
60.158.026500
26.50毫米-305 mm40 mmISO 3310/1
60.158.028000
28.00毫米-305 mm40 mmISO 3310/1
60.158.031500
31.50毫米-305 mm40 mmISO 3310/1
60.158.035500
35.50毫米-305 mm40 mmISO 3310/1
60.158.037500
37.50毫米-305 mm40 mmISO 3310/1
60.158.040000
40.00毫米-305 mm40 mmISO 3310/1
60.158.045000
45.00毫米-305 mm40 mmISO 3310/1
60.158.050000
50.00毫米-305 mm40 mmISO 3310/1
60.158.053000
53.00毫米-305 mm40 mmISO 3310/1
60.158.056000
56.00毫米-305 mm40 mmISO 3310/1
60.158.063000
63.00毫米-305 mm40 mmISO 3310/1
60.158.071000
71.00毫米-305 mm40 mmISO 3310/1
60.158.075000
75.00毫米-305 mm40 mmISO 3310/1
60.158.080000
80.00毫米-305 mm40 mmISO 3310/1
60.158.090000
90.00毫米-305 mm40 mmISO 3310/1
60.158.100000
100.00毫米-305 mm40 mmISO 3310/1
60.158.106000
106.00毫米-305 mm40 mmISO 3310/1
60.158.112000
112.00毫米-305 mm40 mmISO 3310/1
60.158.125000
125.00毫米-305 mm40 mmISO 3310/1


Test Sieves ø 400 mm - 65 mm height - ISO 3310/1 - stainless steel / wire gauze

# mm# mesh no.øheightstandard
60.166.000025
25 µm-400 mm65 mmISO 3310/1
60.166.000032
32 µm-400 mm65 mmISO 3310/1
60.166.000036
36微米-400 mm65 mmISO 3310/1
60.166.000038
38微米-400 mm65 mmISO 3310/1
60.166.000040
40 µm-400 mm65 mmISO 3310/1
60.166.000045
45微米-400 mm65 mmISO 3310/1
60.166.000050
50 µm-400 mm65 mmISO 3310/1
60.166.000053
53微米-400 mm65 mmISO 3310/1
60.166.000056
56微米-400 mm65 mmISO 3310/1
60.166.000063
63 µm-400 mm65 mmISO 3310/1
60.166.000071
71微米-400 mm65 mmISO 3310/1
60.166.000075
75微米-400 mm65 mmISO 3310/1
60.166.000080
80 µm-400 mm65 mmISO 3310/1
60.166.000090
90微米-400 mm65 mmISO 3310/1
60.166.000100
100 µm-400 mm65 mmISO 3310/1
60.166.000106
106微米-400 mm65 mmISO 3310/1
60.166.000112
112微米-400 mm65 mmISO 3310/1
60.166.000125
125 µm-400 mm65 mmISO 3310/1
60.166.000140
140微米-400 mm65 mmISO 3310/1
60.166.000150
150微米-400 mm65 mmISO 3310/1
60.166.000160
160 µm-400 mm65 mmISO 3310/1
60.166.000180
180微米-400 mm65 mmISO 3310/1
60.166.000200
200 µm-400 mm65 mmISO 3310/1
60.166.000212
212微米-400 mm65 mmISO 3310/1
60.166.000224
224微米-400 mm65 mmISO 3310/1
60.166.000250
250 µm-400 mm65 mmISO 3310/1
60.166.000280
280微米-400 mm65 mmISO 3310/1
60.166.000300
300微米-400 mm65 mmISO 3310/1
60.166.000315
315 µm-400 mm65 mmISO 3310/1
60.166.000355
355微米-400 mm65 mmISO 3310/1
60.166.000400
400 µm-400 mm65 mmISO 3310/1
60.166.000425
425微米-400 mm65 mmISO 3310/1
60.166.000450
450微米-400 mm65 mmISO 3310/1
60.166.000500
500 µm-400 mm65 mmISO 3310/1
60.166.000560
560微米-400 mm65 mmISO 3310/1
60.166.000600
600微米-400 mm65 mmISO 3310/1
60.166.000630
630 µm-400 mm65 mmISO 3310/1
60.166.000710
710微米-400 mm65 mmISO 3310/1
60.166.000800
800 µm-400 mm65 mmISO 3310/1
60.166.000850
850微米-400 mm65 mmISO 3310/1
60.166.000900
900微米-400 mm65 mmISO 3310/1
60.166.001000
1.00毫米-400 mm65 mmISO 3310/1
60.166.001120
1.12毫米-400 mm65 mmISO 3310/1
60.166.001180
1.18毫米-400 mm65 mmISO 3310/1
60.166.001250
1.25毫米-400 mm65 mmISO 3310/1
60.166.001400
1.40毫米-400 mm65 mmISO 3310/1
60.166.001600
1.60毫米-400 mm65 mmISO 3310/1
60.166.001700
1.70毫米-400 mm65 mmISO 3310/1
60.166.001800
1.80毫米-400 mm65 mmISO 3310/1
60.166.002000
2.00毫米-400 mm65 mmISO 3310/1
60.166.002240
2.24毫米-400 mm65 mmISO 3310/1
60.166.002360
2.36毫米-400 mm65 mmISO 3310/1
60.166.002500
2.50毫米-400 mm65 mmISO 3310/1
60.166.002800
2.80毫米-400 mm65 mmISO 3310/1
60.166.003150
3.15毫米-400 mm65 mmISO 3310/1
60.166.003350
3.35毫米-400 mm65 mmISO 3310/1
60.166.003550
3.55毫米-400 mm65 mmISO 3310/1
60.166.004000
4.00毫米-400 mm65 mmISO 3310/1
60.166.004500
4.50毫米-400 mm65 mmISO 3310/1
60.166.004750
4.75毫米-400 mm65 mmISO 3310/1
60.166.005000
5.00毫米-400 mm65 mmISO 3310/1
60.166.005600
5.60毫米-400 mm65 mmISO 3310/1
60.166.006300
6.30毫米-400 mm65 mmISO 3310/1
60.166.006700
6.70毫米-400 mm65 mmISO 3310/1
60.166.007100
7.10毫米-400 mm65 mmISO 3310/1
60.166.008000
8.00毫米-400 mm65 mmISO 3310/1
60.166.009000
9.00毫米-400 mm65 mmISO 3310/1
60.166.009500
9.50毫米-400 mm65 mmISO 3310/1
60.166.010000
10.00毫米-400 mm65 mmISO 3310/1
60.166.011200
11.20毫米-400 mm65 mmISO 3310/1
60.166.012500
12.50毫米-400 mm65 mmISO 3310/1
60.166.013200
13.20毫米-400 mm65 mmISO 3310/1
60.166.014000
14.00毫米-400 mm65 mmISO 3310/1
60.166.016000
16.00毫米-400 mm65 mmISO 3310/1
60.166.018000
18.00毫米-400 mm65 mmISO 3310/1
60.166.019000
19.00毫米-400 mm65 mmISO 3310/1
60.166.020000
20.00毫米-400 mm65 mmISO 3310/1
60.166.022400
22.40毫米-400 mm65 mmISO 3310/1
60.166.025000
25.00毫米-400 mm65 mmISO 3310/1
60.166.026500
26.50毫米-400 mm65 mmISO 3310/1
60.166.028000
28.00毫米-400 mm65 mmISO 3310/1
60.166.031500
31.50毫米-400 mm65 mmISO 3310/1
60.166.035500
35.50毫米-400 mm65 mmISO 3310/1
60.166.037500
37.50毫米-400 mm65 mmISO 3310/1
60.166.040000
40.00毫米-400 mm65 mmISO 3310/1
60.166.045000
45.00毫米-400 mm65 mmISO 3310/1
60.166.050000
50.00毫米-400 mm65 mmISO 3310/1
60.166.053000
53.00毫米-400 mm65 mmISO 3310/1
60.166.056000
56.00毫米-400 mm65 mmISO 3310/1
60.166.063000
63.00毫米-400 mm65 mmISO 3310/1
60.166.071000
71.00毫米-400 mm65 mmISO 3310/1
60.166.075000
75.00毫米-400 mm65 mmISO 3310/1
60.166.080000
80.00毫米-400 mm65 mmISO 3310/1
60.166.090000
90.00毫米-400 mm65 mmISO 3310/1
60.166.100000
100.00毫米-400 mm65 mmISO 3310/1
60.166.106000
106.00毫米-400 mm65 mmISO 3310/1
60.166.112000
112.00毫米-400 mm65 mmISO 3310/1
60.166.125000
125.00毫米-400 mm65 mmISO 3310/1


Test Sieves ø 450 mm - 100 mm height - ISO 3310/1 - stainless steel /wire gauze

# mm# mesh no.øheightstandard
60.168.000036
36微米-450 mm100 mmISO 3310/1
60.168.000038
38微米-450 mm100 mmISO 3310/1
60.168.000040
40 µm-450 mm100 mmISO 3310/1
60.168.000045
45微米-450 mm100 mmISO 3310/1
60.168.000050
50 µm-450 mm100 mmISO 3310/1
60.168.000053
53微米-450 mm100 mmISO 3310/1
60.168.000056
56微米-450 mm100 mmISO 3310/1
60.168.000063
63 µm-450 mm100 mmISO 3310/1
60.168.000071
71微米-450 mm100 mmISO 3310/1
60.168.000075
75微米-450 mm100 mmISO 3310/1
60.168.000080
80 µm-450 mm100 mmISO 3310/1
60.168.000090
90微米-450 mm100 mmISO 3310/1
60.168.000100
100 µm-450 mm100 mmISO 3310/1
60.168.000106
106微米-450 mm100 mmISO 3310/1
60.168.000112
112微米-450 mm100 mmISO 3310/1
60.168.000125
125 µm-450 mm100 mmISO 3310/1
60.168.000140
140微米-450 mm100 mmISO 3310/1
60.168.000150
150微米-450 mm100 mmISO 3310/1
60.168.000160
160 µm-450 mm100 mmISO 3310/1
60.168.000180
180微米-450 mm100 mmISO 3310/1
60.168.000200
200 µm-450 mm100 mmISO 3310/1
60.168.000212
212微米-450 mm100 mmISO 3310/1
60.168.000224
224微米-450 mm100 mmISO 3310/1
60.168.000250
250 µm-450 mm100 mmISO 3310/1
60.168.000280
280微米-450 mm100 mmISO 3310/1
60.168.000300
300微米-450 mm100 mmISO 3310/1
60.168.000315
315 µm-450 mm100 mmISO 3310/1
60.168.000355
355微米-450 mm100 mmISO 3310/1
60.168.000400
400 µm-450 mm100 mmISO 3310/1
60.168.000425
425微米-450 mm100 mmISO 3310/1
60.168.000450
450微米-450 mm100 mmISO 3310/1
60.168.000500
500 µm-450 mm100 mmISO 3310/1
60.168.000560
560微米-450 mm100 mmISO 3310/1
60.168.000600
600微米-450 mm100 mmISO 3310/1
60.168.000630
630 µm-450 mm100 mmISO 3310/1
60.168.000710
710微米-450 mm100 mmISO 3310/1
60.168.000800
800 µm-450 mm100 mmISO 3310/1
60.168.000850
850微米-450 mm100 mmISO 3310/1
60.168.000900
900微米-450 mm100 mmISO 3310/1
60.168.001000
1.00毫米-450 mm100 mmISO 3310/1
60.168.001120
1.12毫米-450 mm100 mmISO 3310/1
60.168.001180
1.18毫米-450 mm100 mmISO 3310/1
60.168.001250
1.25毫米-450 mm100 mmISO 3310/1
60.168.001400
1.40毫米-450 mm100 mmISO 3310/1
60.168.001600
1.60毫米-450 mm100 mmISO 3310/1
60.168.001700
1.70毫米-450 mm100 mmISO 3310/1
60.168.001800
1.80毫米-450 mm100 mmISO 3310/1
60.168.002000
2.00毫米-450 mm100 mmISO 3310/1
60.168.002240
2.24毫米-450 mm100 mmISO 3310/1
60.168.002360
2.36毫米-450 mm100 mmISO 3310/1
60.168.002500
2.50毫米-450 mm100 mmISO 3310/1
60.168.002800
2.80毫米-450 mm100 mmISO 3310/1
60.168.003150
3.15毫米-450 mm100 mmISO 3310/1
60.168.003350
3.35毫米-450 mm100 mmISO 3310/1
60.168.003550
3.55毫米-450 mm100 mmISO 3310/1
60.168.004000
4.00毫米-450 mm100 mmISO 3310/1
60.168.004500
4.50毫米-450 mm100 mmISO 3310/1
60.168.004750
4.75毫米-450 mm100 mmISO 3310/1
60.168.005000
5.00毫米-450 mm100 mmISO 3310/1
60.168.005600
5.60毫米-450 mm100 mmISO 3310/1
60.168.006300
6.30毫米-450 mm100 mmISO 3310/1
60.168.006700
6.70毫米-450 mm100 mmISO 3310/1
60.168.007100
7.10毫米-450 mm100 mmISO 3310/1
60.168.008000
8.00毫米-450 mm100 mmISO 3310/1
60.168.009000
9.00毫米-450 mm100 mmISO 3310/1
60.168.009500
9.50毫米-450 mm100 mmISO 3310/1
60.168.010000
10.00毫米-450 mm100 mmISO 3310/1
60.168.011200
11.20毫米-450 mm100 mmISO 3310/1
60.168.012500
12.50毫米-450 mm100 mmISO 3310/1
60.168.013200
13.20毫米-450 mm100 mmISO 3310/1
60.168.014000
14.00毫米-450 mm100 mmISO 3310/1
60.168.016000
16.00毫米-450 mm100 mmISO 3310/1
60.168.018000
18.00毫米-450 mm100 mmISO 3310/1
60.168.019000
19.00毫米-450 mm100 mmISO 3310/1
60.168.020000
20.00毫米-450 mm100 mmISO 3310/1
60.168.022400
22.40毫米-450 mm100 mmISO 3310/1
60.168.025000
25.00毫米-450 mm100 mmISO 3310/1
60.168.026500
26.50毫米-450 mm100 mmISO 3310/1
60.168.028000
28.00毫米-450 mm100 mmISO 3310/1
60.168.031500
31.50毫米-450 mm100 mmISO 3310/1
60.168.035500
35.50毫米-450 mm100 mmISO 3310/1
60.168.037500
37.50毫米-450 mm100 mmISO 3310/1
60.168.040000
40.00毫米-450 mm100 mmISO 3310/1
60.168.045000
45.00毫米-450 mm100 mmISO 3310/1
60.168.050000
50.00毫米-450 mm100 mmISO 3310/1
60.168.053000
53.00毫米-450 mm100 mmISO 3310/1
60.168.056000
56.00毫米-450 mm100 mmISO 3310/1
60.168.063000
63.00毫米-450 mm100 mmISO 3310/1
60.168.071000
71.00毫米-450 mm100 mmISO 3310/1
60.168.075000
75.00毫米-450 mm100 mmISO 3310/1
60.168.080000
80.00毫米-450 mm100 mmISO 3310/1
60.168.090000
90.00毫米-450 mm100 mmISO 3310/1
60.168.100000
100.00毫米-450 mm100 mmISO 3310/1
60.168.106000
106.00毫米-450 mm100 mmISO 3310/1
60.168.112000
112.00毫米-450 mm100 mmISO 3310/1
60.168.125000
125.00毫米-450 mm100 mmISO 3310/1


Test Sieves ø 100 mm - 40 mm height - ASTM E11 - stainless steel / wire gauze

# mm# mesh no.øheightstandard
60.108.000020
20 µm635 Mesh100 mm40 mmASTM E11
60.108.000025
25 µm500 Mesh100 mm40 mmASTM E11
60.108.000032
32 µm450 Mesh100 mm40 mmASTM E11
60.108.000038
38微米400 Mesh100 mm40 mmASTM E11
60.108.000045
45微米325 Mesh100 mm40 mmASTM E11
60.108.000053
53微米270 Mesh100 mm40 mmASTM E11
60.108.000063
63 µm230 Mesh100 mm40 mmASTM E11
60.108.000075
75微米200 Mesh100 mm40 mmASTM E11
60.108.000090
90微米170 Mesh100 mm40 mmASTM E11
60.108.000106
106微米140 Mesh100 mm40 mmASTM E11
60.108.000125
125 µm120 Mesh100 mm40 mmASTM E11
60.108.000150
150微米100 Mesh100 mm40 mmASTM E11
60.108.000180
180微米80 Mesh100 mm40 mmASTM E11
60.108.000212
212微米70 Mesh100 mm40 mmASTM E11
60.108.000250
250 µm60 Mesh100 mm40 mmASTM E11
60.108.000300
300微米50 Mesh100 mm40 mmASTM E11
60.108.000355
355微米45 Mesh100 mm40 mmASTM E11
60.108.000425
425微米40 Mesh100 mm40 mmASTM E11
60.108.000500
500 µm35 Mesh100 mm40 mmASTM E11
60.108.000600
600微米30 Mesh100 mm40 mmASTM E11
60.108.000710
710微米25 Mesh100 mm40 mmASTM E11
60.108.000850
850微米20 Mesh100 mm40 mmASTM E11
60.108.001000
1.00毫米18 Mesh100 mm40 mmASTM E11
60.108.001180
1.18毫米16 Mesh100 mm40 mmASTM E11
60.108.001400
1.40毫米14 Mesh100 mm40 mmASTM E11
60.108.001700
1.70毫米12 Mesh100 mm40 mmASTM E11
60.108.002000
2.00毫米10 Mesh100 mm40 mmASTM E11
60.108.002360
2.36毫米8 Mesh100 mm40 mmASTM E11
60.108.002800
2.80毫米7 Mesh100 mm40 mmASTM E11
60.108.003350
3.35毫米6 Mesh100 mm40 mmASTM E11
60.108.004000
4.00毫米5 Mesh100 mm40 mmASTM E11
60.108.004750
4.75毫米4 Mesh100 mm40 mmASTM E11
60.108.005600
5.60毫米3.5 Mesh100 mm40 mmASTM E11
60.108.006300
6.30毫米1/4"100 mm40 mmASTM E11
60.108.006700
6.70毫米0.265"100 mm40 mmASTM E11
60.108.008000
8.00毫米5/16"100 mm40 mmASTM E11
60.108.009500
9.50毫米3/8"100 mm40 mmASTM E11
60.108.011200
11.20毫米7/16"100 mm40 mmASTM E11
60.108.012500
12.50毫米1/2"100 mm40 mmASTM E11
60.108.013200
13.20毫米0.530"100 mm40 mmASTM E11
60.108.016000
16.00毫米5/8"100 mm40 mmASTM E11
60.108.019000
19.00毫米3/4"100 mm40 mmASTM E11
60.108.022400
22.40毫米7/8"100 mm40 mmASTM E11
60.108.025000
25.00毫米1"100 mm40 mmASTM E11
60.108.026500
26.50毫米1.06"100 mm40 mmASTM E11
60.108.031500
31.50毫米11/4"100 mm40 mmASTM E11
60.108.037500
37.50毫米11/2"100 mm40 mmASTM E11
60.108.045000
45.00毫米13/4"100 mm40 mmASTM E11


Test Sieves ø 305 mm - 40 mm height - ASTM E11 - stainless steel / wire gauze

# mm# mesh no.øheightstandard
60.159.000025
25 µm500 Mesh305 mm40 mmASTM E11
60.159.000032
32 µm450 Mesh305 mm40 mmASTM E11
60.159.000038
38微米400 Mesh305 mm40 mmASTM E11
60.159.000045
45微米325 Mesh305 mm40 mmASTM E11
60.159.000053
53微米270 Mesh305 mm40 mmASTM E11
60.159.000063
63 µm230 Mesh305 mm40 mmASTM E11
60.159.000075
75微米200 Mesh305 mm40 mmASTM E11
60.159.000090
90微米170 Mesh305 mm40 mmASTM E11
60.159.000106
106微米140 Mesh305 mm40 mmASTM E11
60.159.000125
125 µm120 Mesh305 mm40 mmASTM E11
60.159.000150
150微米100 Mesh305 mm40 mmASTM E11
60.159.000180
180微米80 Mesh305 mm40 mmASTM E11
60.159.000212
212微米70 Mesh305 mm40 mmASTM E11
60.159.000250
250 µm60 Mesh305 mm40 mmASTM E11
60.159.000300
300微米50 Mesh305 mm40 mmASTM E11
60.159.000355
355微米45 Mesh305 mm40 mmASTM E11
60.159.000425
425微米40 Mesh305 mm40 mmASTM E11
60.159.000500
500 µm35 Mesh305 mm40 mmASTM E11
60.159.000600
600微米30 Mesh305 mm40 mmASTM E11
60.159.000710
710微米25 Mesh305 mm40 mmASTM E11
60.159.000850
850微米20 Mesh305 mm40 mmASTM E11
60.159.001000
1.00毫米18 Mesh305 mm40 mmASTM E11
60.159.001180
1.18毫米16 Mesh305 mm40 mmASTM E11
60.159.001400
1.40毫米14 Mesh305 mm40 mmASTM E11
60.159.001700
1.70毫米12 Mesh305 mm40 mmASTM E11
60.159.002000
2.00毫米10 Mesh305 mm40 mmASTM E11
60.159.002360
2.36毫米8 Mesh305 mm40 mmASTM E11
60.159.002800
2.80毫米7 Mesh305 mm40 mmASTM E11
60.159.003350
3.35毫米6 Mesh305 mm40 mmASTM E11
60.159.004000
4.00毫米5 Mesh305 mm40 mmASTM E11
60.159.004750
4.75毫米4 Mesh305 mm40 mmASTM E11
60.159.005600
5.60毫米3.5 Mesh305 mm40 mmASTM E11
60.159.006300
6.30毫米1/4"305 mm40 mmASTM E11
60.159.006700
6.70毫米0.265"305 mm40 mmASTM E11
60.159.008000
8.00毫米5/16"305 mm40 mmASTM E11
60.159.009500
9.50毫米3/8"305 mm40 mmASTM E11
60.159.011200
11.20毫米7/16"305 mm40 mmASTM E11
60.159.012500
12.50毫米1/2"305 mm40 mmASTM E11
60.159.013200
13.20毫米0.530"305 mm40 mmASTM E11
60.159.016000
16.00毫米5/8"305 mm40 mmASTM E11
60.159.019000
19.00毫米3/4"305 mm40 mmASTM E11
60.159.022400
22.40毫米7/8"305 mm40 mmASTM E11
60.159.025000
25.00毫米1"305 mm40 mmASTM E11
60.159.026500
26.50毫米1.06"305 mm40 mmASTM E11
60.159.031500
31.50毫米11/4"305 mm40 mmASTM E11
60.159.037500
37.50毫米11/2"305 mm40 mmASTM E11
60.159.045000
45.00毫米13/4"305 mm40 mmASTM E11
60.159.050000
50.00毫米2"305 mm40 mmASTM E11
60.159.053000
53.00毫米2.12"305 mm40 mmASTM E11
60.159.063000
63.00毫米21/2"305 mm40 mmASTM E11
60.159.075000
75.00毫米3"305 mm40 mmASTM E11
60.159.090000
90.00毫米31/2"305 mm40 mmASTM E11
60.159.100000
100.00毫米4"305 mm40 mmASTM E11
60.159.106000
106.00毫米4.24"305 mm40 mmASTM E11
60.159.125000
125.00毫米5"305 mm40 mmASTM E11


Test Sieves ø 400 mm - 65 mm height - ASTM E11 - stainless steel / wire gauze

# mm# mesh no.øheightstandard
60.167.000025
25 µm500 Mesh400 mm65 mmASTM E11
60.167.000032
32 µm450 Mesh400 mm65 mmASTM E11
60.167.000038
38微米400 Mesh400 mm65 mmASTM E11
60.167.000045
45微米325 Mesh400 mm65 mmASTM E11
60.167.000053
53微米270 Mesh400 mm65 mmASTM E11
60.167.000063
63 µm230 Mesh400 mm65 mmASTM E11
60.167.000075
75微米200 Mesh400 mm65 mmASTM E11
60.167.000090
90微米170 Mesh400 mm65 mmASTM E11
60.167.000106
106微米140 Mesh400 mm65 mmASTM E11
60.167.000125
125 µm120 Mesh400 mm65 mmASTM E11
60.167.000150
150微米100 Mesh400 mm65 mmASTM E11
60.167.000180
180微米80 Mesh400 mm65 mmASTM E11
60.167.000212
212微米70 Mesh400 mm65 mmASTM E11
60.167.000250
250 µm60 Mesh400 mm65 mmASTM E11
60.167.000300
300微米50 Mesh400 mm65 mmASTM E11
60.167.000355
355微米45 Mesh400 mm65 mmASTM E11
60.167.000425
425微米40 Mesh400 mm65 mmASTM E11
60.167.000500
500 µm35 Mesh400 mm65 mmASTM E11
60.167.000600
600微米30 Mesh400 mm65 mmASTM E11
60.167.000710
710微米25 Mesh400 mm65 mmASTM E11
60.167.000850
850微米20 Mesh400 mm65 mmASTM E11
60.167.001000
1.00毫米18 Mesh400 mm65 mmASTM E11
60.167.001180
1.18毫米16 Mesh400 mm65 mmASTM E11
60.167.001400
1.40毫米14 Mesh400 mm65 mmASTM E11
60.167.001700
1.70毫米12 Mesh400 mm65 mmASTM E11
60.167.002000
2.00毫米10 Mesh400 mm65 mmASTM E11
60.167.002360
2.36毫米8 Mesh400 mm65 mmASTM E11
60.167.002800
2.80毫米7 Mesh400 mm65 mmASTM E11
60.167.003350
3.35毫米6 Mesh400 mm65 mmASTM E11
60.167.004000
4.00毫米5 Mesh400 mm65 mmASTM E11
60.167.004750
4.75毫米4 Mesh400 mm65 mmASTM E11
60.167.005600
5.60毫米3.5 Mesh400 mm65 mmASTM E11
60.167.006300
6.30毫米1/4"400 mm65 mmASTM E11
60.167.006700
6.70毫米0.265"400 mm65 mmASTM E11
60.167.008000
8.00毫米5/16"400 mm65 mmASTM E11
60.167.009500
9.50毫米3/8"400 mm65 mmASTM E11
60.167.011200
11.20毫米7/16"400 mm65 mmASTM E11
60.167.012500
12.50毫米1/2"400 mm65 mmASTM E11
60.167.013200
13.20毫米0.530"400 mm65 mmASTM E11
60.167.016000
16.00毫米5/8"400 mm65 mmASTM E11
60.167.019000
19.00毫米3/4"400 mm65 mmASTM E11
60.167.022400
22.40毫米7/8"400 mm65 mmASTM E11
60.167.025000
25.00毫米1"400 mm65 mmASTM E11
60.167.026500
26.50毫米1.06"400 mm65 mmASTM E11
60.167.031500
31.50毫米11/4"400 mm65 mmASTM E11
60.167.037500
37.50毫米11/2"400 mm65 mmASTM E11
60.167.045000
45.00毫米13/4"400 mm65 mmASTM E11
60.167.050000
50.00毫米2"400 mm65 mmASTM E11
60.167.053000
53.00毫米2.12"400 mm65 mmASTM E11
60.167.063000
63.00毫米21/2"400 mm65 mmASTM E11
60.167.075000
75.00毫米3"400 mm65 mmASTM E11
60.167.090000
90.00毫米31/2"400 mm65 mmASTM E11
60.167.100000
100.00毫米4"400 mm65 mmASTM E11
60.167.106000
106.00毫米4.24"400 mm65 mmASTM E11
60.167.125000
125.00毫米5"400 mm65 mmASTM E11


Test Sieves ø 450 mm - 100 mm height - ASTM E11 - stainless steel /wire gauze

# mm# mesh no.øheightstandard
60.169.000038
38微米400 Mesh450 mm100 mmASTM E11
60.169.000045
45微米325 Mesh450 mm100 mmASTM E11
60.169.000053
53微米270 Mesh450 mm100 mmASTM E11
60.169.000063
63 µm230 Mesh450 mm100 mmASTM E11
60.169.000075
75微米200 Mesh450 mm100 mmASTM E11
60.169.000090
90微米170 Mesh450 mm100 mmASTM E11
60.169.000106
106微米140 Mesh450 mm100 mmASTM E11
60.169.000125
125 µm120 Mesh450 mm100 mmASTM E11
60.169.000150
150微米100 Mesh450 mm100 mmASTM E11
60.169.000180
180微米80 Mesh450 mm100 mmASTM E11
60.169.000212
212微米70 Mesh450 mm100 mmASTM E11
60.169.000250
250 µm60 Mesh450 mm100 mmASTM E11
60.169.000300
300微米50 Mesh450 mm100 mmASTM E11
60.169.000355
355微米45 Mesh450 mm100 mmASTM E11
60.169.000425
425微米40 Mesh450 mm100 mmASTM E11
60.169.000500
500 µm35 Mesh450 mm100 mmASTM E11
60.169.000600
600微米30 Mesh450 mm100 mmASTM E11
60.169.000710
710微米25 Mesh450 mm100 mmASTM E11
60.169.000850
850微米20 Mesh450 mm100 mmASTM E11
60.169.001000
1.00毫米18 Mesh450 mm100 mmASTM E11
60.169.001180
1.18毫米16 Mesh450 mm100 mmASTM E11
60.169.001400
1.40毫米14 Mesh450 mm100 mmASTM E11
60.169.001700
1.70毫米12 Mesh450 mm100 mmASTM E11
60.169.002000
2.00毫米10 Mesh450 mm100 mmASTM E11
60.169.002360
2.36毫米8 Mesh450 mm100 mmASTM E11
60.169.002800
2.80毫米7 Mesh450 mm100 mmASTM E11
60.169.003350
3.35毫米6 Mesh450 mm100 mmASTM E11
60.169.004000
4.00毫米5 Mesh450 mm100 mmASTM E11
60.169.004750
4.75毫米4 Mesh450 mm100 mmASTM E11
60.169.005600
5.60毫米3.5 Mesh450 mm100 mmASTM E11
60.169.006300
6.30毫米1/4"450 mm100 mmASTM E11
60.169.006700
6.70毫米0.265"450 mm100 mmASTM E11
60.169.008000
8.00毫米5/16"450 mm100 mmASTM E11
60.169.009500
9.50毫米3/8"450 mm100 mmASTM E11
60.169.011200
11.20毫米7/16"450 mm100 mmASTM E11
60.169.012500
12.50毫米1/2"450 mm100 mmASTM E11
60.169.013200
13.20毫米0.530"450 mm100 mmASTM E11
60.169.016000
16.00毫米5/8"450 mm100 mmASTM E11
60.169.019000
19.00毫米3/4"450 mm100 mmASTM E11
60.169.022400
22.40毫米7/8"450 mm100 mmASTM E11
60.169.025000
25.00毫米1"450 mm100 mmASTM E11
60.169.026500
26.50毫米1.06"450 mm100 mmASTM E11
60.169.031500
31.50毫米11/4"450 mm100 mmASTM E11
60.169.037500
37.50毫米11/2"450 mm100 mmASTM E11
60.169.045000
45.00毫米13/4"450 mm100 mmASTM E11
60.169.050000
50.00毫米2"450 mm100 mmASTM E11
60.169.053000
53.00毫米2.12"450 mm100 mmASTM E11
60.169.063000
63.00毫米21/2"450 mm100 mmASTM E11
60.169.075000
75.00毫米3"450 mm100 mmASTM E11
60.169.090000
90.00毫米31/2"450 mm100 mmASTM E11
60.169.100000
100.00毫米4"450 mm100 mmASTM E11
60.169.106000
106.00毫米4.24"450 mm100 mmASTM E11
60.169.125000
125.00毫米5"450 mm100 mmASTM E11

Further information
